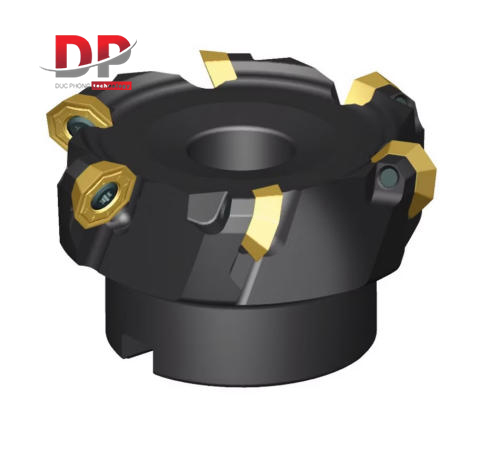

Dao phay ghép mảnh KENNAMETAL KSOM Mini - Shell Mills - Metric
Mã sản phẩm: KSOM
Trụ sở chính Hà Nội:
- Hà Nội
- Hotline: 0985779287
- Email: info@ducphong.vn
-
Thời gian: Từ 8h - 19h thứ 2 đến sáng thứ 7, chiều thứ 7 và chủ nhật nghỉ không làm việc
Chi nhánh TP.HCM:
- Thành phố Hồ Chí Minh
- Hotline: 0985779287
- Email: Info@ducphong.vn
-
Thời gian: Từ 8h - 19h thứ 2 đến sáng thứ 7, chiều thứ 7 và chủ nhật nghỉ không làm việc
Đang tải
|
Hình
|
Mã hàng
|
Model
|
Mô tả
|
Giá bán (vnđ)
|
Số lượng
|
|---|---|---|---|---|---|
|
DA4245 | DA4245 | 50A06RS45OF06A |
|
|
|
|
DA1176 | DA1176 | 63A07RS45OF06A |
|
|
|
|
DA4192 | DA4192 | 80A09RS45OF06A |
|
|
|
|
DA4349 | DA4349 | KSOM100R07OF06 |
|
|
|
|
DA3335 | DA3335 | KSOM100R10OF06 |
|
|
|
|
DA5476 | DA5476 | KSOM125R08OF06 |
|
|
|
|
DA3254 | DA3254 | KSOM125R12OF06 |
|
|
|
|
DA9258 | DA9258 | KSOM160R10OF06 |
|
|
|
|
DA6965 | DA6965 | KSOM160R16OF06 |
|
|
|
|
DA2532 | DA2532 | KSOM40Z04OF06X |
|
|
|
|
DA8119 | DA8119 | KSOM50R04OF06 |
|
|
|
|
DA4297 | DA4297 | KSOM50Z06OF06X |
|
|
|
|
DA9105 | DA9105 | KSOM63R05OF06 |
|
|
|
|
DA3830 | DA3830 | KSOM63Z07OF06X |
|
|
|
|
DA9696 | DA9696 | KSOM80R06OF06 |
|
|
|
|
DA1220 | DA1220 | KSOM80Z09OF06X |
|
|
ĐẶC ĐIỂM NỔI BẬT
View: 18
Thông tin sản phẩm
| ISO Catalog Number | D1 | D1MAX | D | D4 | D6 | L | AP1MAX | Number of Inserts | Maximum Ramping Angle | Weight Kilograms | Max RPM |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 50A06RS45OF06A | 50 | 58.9 | 22 | 42 | 43 | 3.5 | 6 | 5 | 0.36 | 12730 | |
| 63A07RS45OF06A | 63 | 71.8 | 22 | 54 | 43 | 3.5 | 7 | 4 | 0.65 | 10110 | |
| 80A09RS45OF06A | 80 | 88.7 | 27 | 64 | 50 | 3.5 | 9 | 3 | 1.15 | 7960 | |
| KSOM100R07OF06 | 100 | 108.6 | 32 | 80 | 50 | 3.5 | 7 | 2 | 1.71 | 6370 | |
| KSOM100R10OF06 | 100 | 108.6 | 32 | 80 | 50 | 3.5 | 10 | 2 | 1.75 | 6370 | |
| KSOM125R08OF06 | 125 | 133.6 | 40 | 94 | 63 | 3.5 | 8 | 2 | 2.74 | 5090 | |
| KSOM125R12OF06 | 125 | 133.6 | 40 | 94 | 63 | 3.5 | 12 | 2 | 2.83 | 5090 | |
| KSOM160R10OF06 | 160 | 168.5 | 40 | 66.7 | 114 | 63 | 3.5 | 10 | 1 | 4.3 | 3980 |
| KSOM160R16OF06 | 160 | 168.5 | 40 | 66.7 | 114 | 63 | 3.5 | 16 | 1 | 4.46 | 3980 |
| KSOM40Z04OF06X | 40 | 48.95 | 16 | 33 | 40 | 3.5 | 4 | 7.5 | 0.23 | 15920 | |
| KSOM50R04OF06 | 50 | 58.9 | 22 | 38 | 43 | 3.5 | 4 | 5 | 0.35 | 12730 | |
| KSOM50Z06OF06X | 50 | 58.8 | 22 | 42 | 43 | 3.5 | 6 | 5 | 0.37 | 12730 | |
| KSOM63R05OF06 | 63 | 71.8 | 22 | 50 | 43 | 3.5 | 5 | 4 | 0.62 | 10110 | |
| KSOM63Z07OF06X | 63 | 71.7 | 22 | 50 | 43 | 3.5 | 7 | 3.9 | 0.61 | 10110 | |
| KSOM80R06OF06 | 80 | 88.7 | 27 | 60 | 50 | 3.5 | 6 | 3 | 1.1 | 7960 | |
| KSOM80Z09OF06X | 80 | 88.7 | 27 | 60 | 50 | 3.5 | 9 | 2.9 | 1.09 | 7960 |
Insert Selection Guide
| Material Group | Light Machining | General Purpose | Heavy Machining | |||
| (Light geometry) | – | (Strong geometry) | ||||
| wear resistance |  |
toughness | ||||
| Geometry | Grade | Geometry | Grade | Geometry | Grade | |
| P1–P2 | .E..LB | KCPK30 | .E..GB | KCPM40 | .S..HB | KCPK30 |
| P3–P4 | .E..LB | KCPK30 | .E..GB | KCPK30 | .S..HB | KCPK30 |
| P5–P6 | .E..LB | KC725M | .E..GB | KC725M | .S..HB | KC725M |
| M1–M2 | .E..LB | KCSM40 | .E..GB | KCSM40 | .S..HB | KCSM40 |
| M3 | .E..LB | KCSM40 | .E..GB | KCSM40 | .S..HB | KCSM40 |
| K1–K2 | .E..LB | KCK15 | .E..GB | KC520M | .E..GB | KCK15 |
| K3 | .E..LB | KCPK30 | .E..GB | KC520M | .S..HB | KCPK30 |
| N1–N2 | .F..LBJ | KC410M | .E..LBJ | KC422M | .E..LBJ | KC422M |
| N3 | .F..LBJ | KC410M | .F..LNJ | KC410M | .F..LNJ | KC410M |
| S1–S2 | .E..LB | KC725M | .E..GB | KC725M | .S..HB | KC725M |
| S3 | .E..LB | KCSM40 | .E..GB | KCSM40 | .S..HB | KCSM40 |
| S4 | .E..LB | KCSM40 | .E..GB | KCSM40 | .S..HB | KCSM40 |
| H1 | – | – | – | – | – | – |
Recommended Starting Feeds [mm]
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry | ||||||||||||||
| 5% | 10% | 20% | 30% | 40–100% | ||||||||||||
| .F..LBJ | 0,17 | 0,61 | 1,03 | 0,12 | 0,44 | 0,74 | 0,09 | 0,33 | 0,55 | 0,08 | 0,29 | 0,48 | 0,07 | 0,26 | 0,44 | .F..LBJ |
| .F..LNJ | 0,17 | 0,61 | 1,03 | 0,12 | 0,44 | 0,74 | 0,09 | 0,33 | 0,55 | 0,08 | 0,29 | 0,48 | 0,07 | 0,26 | 0,44 | .F..LNJ |
| .E..LBJ | 0,17 | 0,61 | 1,13 | 0,12 | 0,44 | 0,81 | 0,09 | 0,33 | 0,61 | 0,08 | 0,29 | 0,53 | 0,07 | 0,26 | 0,48 | .E..LBJ |
| .E..LB | 0,34 | 0,75 | 1,20 | 0,25 | 0,54 | 0,86 | 0,19 | 0,40 | 0,64 | 0,16 | 0,35 | 0,56 | 0,15 | 0,32 | 0,51 | .E..LB |
| .S..LB | 0,34 | 0,73 | 1,30 | 0,25 | 0,53 | 0,93 | 0,19 | 0,39 | 0,69 | 0,16 | 0,34 | 0,60 | 0,15 | 0,32 | 0,55 | .S..LB |
| .E..GB | 0,34 | 0,87 | 1,39 | 0,25 | 0,62 | 1,00 | 0,19 | 0,47 | 0,74 | 0,16 | 0,41 | 0,65 | 0,15 | 0,37 | 0,59 | .E..GB |
| .S..HB | 0,34 | 0,87 | 1,49 | 0,25 | 0,62 | 1,07 | 0,19 | 0,47 | 0,79 | 0,16 | 0,41 | 0,69 | 0,15 | 0,37 | 0,63 | .S..HB |
| Light Machining | General Purpose | Heavy Machining |
Recommended Starting Feeds [IPT]
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry | ||||||||||||||
| 5% | 10% | 20% | 30% | 40–100% | ||||||||||||
| .F..LBJ | .007 | .025 | .041 | .005 | .018 | .030 | .004 | .013 | .022 | .003 | .012 | .019 | .003 | .011 | .018 | .F..LBJ |
| .F..LNJ | .007 | .025 | .041 | .005 | .018 | .030 | .004 | .013 | .022 | .003 | .012 | .019 | .003 | .011 | .018 | .F..LNJ |
| .E..LBJ | .007 | .025 | .045 | .005 | .018 | .033 | .004 | .013 | .024 | .003 | .012 | .021 | .003 | .011 | .019 | .E..LBJ |
| .E..LB | .014 | .029 | .047 | .010 | .021 | .034 | .007 | .016 | .025 | .006 | .014 | .022 | .006 | .013 | .020 | .E..LB |
| .S..LB | .014 | .029 | .051 | .010 | .021 | .037 | .007 | .016 | .027 | .006 | .014 | .024 | .006 | .012 | .022 | .S..LB |
| .E..GB | .014 | .034 | .055 | .010 | .025 | .039 | .007 | .018 | .029 | .006 | .016 | .025 | .006 | .015 | .023 | .E..GB |
| .S..HB | .014 | .034 | .059 | .010 | .025 | .042 | .007 | .018 | .031 | .006 | .016 | .027 | .006 | .015 | .025 | .S..HB |
| Light Machining | General Purpose | Heavy Machining |
Recommended Starting Speeds [m/min]
| Material Group | KC410M | KC422M | KC520M | KC522M | KC725M | KCK15 | KCPM20 | KCPK30 | |||||||||||||||||
| P | 1 | – | – | – | – | – | – | – | – | – | 395 | 345 | 325 | 315 | 275 | 255 | – | – | – | 660 | 580 | 535 | 545 | 475 | 440 |
| 2 | – | – | – | – | – | – | – | – | – | 330 | 290 | 240 | 260 | 230 | 195 | – | – | – | 410 | 370 | 330 | 335 | 305 | 275 | |
| 3 | – | – | – | – | – | – | – | – | – | 305 | 255 | 215 | 240 | 205 | 170 | – | – | – | 370 | 330 | 305 | 305 | 275 | 250 | |
| 4 | – | – | – | – | – | – | – | – | – | 270 | 225 | 180 | 215 | 180 | 145 | – | – | – | 275 | 255 | 230 | 225 | 210 | 190 | |
| 5 | – | – | – | – | – | – | – | – | – | 225 | 200 | 180 | 180 | 160 | 145 | – | – | – | 330 | 300 | 275 | 310 | 275 | 255 | |
| 6 | – | – | – | – | – | – | – | – | – | 200 | 150 | 120 | 160 | 120 | 95 | – | – | – | 230 | 200 | 175 | 190 | 165 | – | |
| M | 1 | – | – | – | – | – | – | – | – | – | 245 | 215 | 200 | 205 | 180 | 165 | – | – | – | 270 | 240 | 205 | 250 | 220 | 190 |
| 2 | – | – | – | – | – | – | – | – | – | 225 | 190 | 160 | 185 | 160 | 130 | – | – | – | 245 | 215 | 190 | 225 | 195 | 170 | |
| 3 | – | – | – | – | – | – | – | – | – | 170 | 145 | 115 | 140 | 120 | 95 | – | – | – | 195 | 175 | 150 | 175 | 160 | 140 | |
| K | 1 | – | – | – | – | – | – | 325 | 295 | 260 | 275 | 250 | 220 | – | – | – | 505 | 460 | 410 | 435 | 390 | 350 | 355 | 320 | 285 |
| 2 | – | – | – | – | – | – | 255 | 225 | 215 | 215 | 195 | 180 | – | – | – | 400 | 355 | 330 | 345 | 310 | 280 | 280 | 255 | 230 | |
| 3 | – | – | – | – | – | – | 215 | 190 | 170 | 180 | 160 | 145 | – | – | – | 335 | 300 | 275 | 290 | 255 | 240 | 235 | 210 | 195 | |
| N | 1–2 | 1460 | 1300 | 1195 | 1285 | 1135 | 1050 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | 1300 | 1195 | 1100 | 1135 | 1050 | 915 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| S | 1 | – | – | – | – | – | – | – | – | – | 50 | 45 | 35 | 45 | 35 | 30 | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | 50 | 45 | 35 | 45 | 35 | 30 | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | 60 | 50 | 35 | 55 | 45 | 30 | – | – | – | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | 85 | 60 | 45 | 75 | 55 | 35 | – | – | – | – | – | – | – | – | – | |
| H | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
Recommended Starting Speeds [SFM]
| Material Group | KC410M | KC422M | KC520M | KC522M | KC725M | KCK15 | KCPM20 | KCPK30 | |||||||||||||||||
| P | 1 | – | – | – | – | – | – | – | – | – | 1300 | 1130 | 1060 | 1030 | 900 | 840 | – | – | – | 2170 | 1910 | 1760 | 1780 | 1560 | 1450 |
| 2 | – | – | – | – | – | – | – | – | – | 1080 | 950 | 790 | 860 | 760 | 640 | – | – | – | 1340 | 1210 | 1090 | 1100 | 1000 | 900 | |
| 3 | – | – | – | – | – | – | – | – | – | 1000 | 840 | 700 | 790 | 670 | 550 | – | – | – | 1210 | 1090 | 1000 | 1000 | 900 | 820 | |
| 4 | – | – | – | – | – | – | – | – | – | 890 | 730 | 590 | 710 | 590 | 470 | – | – | – | 910 | 840 | 760 | 740 | 690 | 620 | |
| 5 | – | – | – | – | – | – | – | – | – | 730 | 660 | 590 | 590 | 530 | 470 | – | – | – | 1090 | 980 | 900 | 1020 | 910 | 830 | |
| 6 | – | – | – | – | – | – | – | – | – | 650 | 490 | 400 | 520 | 400 | 310 | – | – | – | 760 | 660 | 570 | 620 | 540 | – | |
| M | 1 | – | – | – | – | – | – | – | – | – | 800 | 710 | 650 | 670 | 590 | 540 | – | – | – | 880 | 790 | 680 | 820 | 720 | 620 |
| 2 | – | – | – | – | – | – | – | – | – | 730 | 620 | 520 | 610 | 520 | 430 | – | – | – | 800 | 700 | 620 | 730 | 640 | 550 | |
| 3 | – | – | – | – | – | – | – | – | – | 550 | 480 | 370 | 460 | 400 | 310 | – | – | – | 640 | 570 | 490 | 570 | 520 | 460 | |
| K | 1 | – | – | – | – | – | – | 1060 | 960 | 850 | 900 | 820 | 720 | – | – | – | 1660 | 1510 | 1340 | 1420 | 1280 | 1150 | 1160 | 1050 | 940 |
| 2 | – | – | – | – | – | – | 830 | 740 | 700 | 710 | 640 | 590 | – | – | – | 1310 | 1170 | 1090 | 1130 | 1010 | 920 | 920 | 830 | 760 | |
| 3 | – | – | – | – | – | – | 700 | 620 | 560 | 590 | 530 | 480 | – | – | – | 1100 | 980 | 900 | 950 | 840 | 780 | 770 | 690 | 640 | |
| N | 1–2 | 4790 | 4260 | 3920 | 4220 | 3720 | 3440 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | 4260 | 3920 | 3600 | 3720 | 3440 | 3000 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| S | 1 | – | – | – | – | – | – | – | – | – | 160 | 140 | 110 | 140 | 120 | 100 | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | 160 | 140 | 110 | 140 | 120 | 100 | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | 200 | 160 | 110 | 180 | 140 | 100 | – | – | – | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | 280 | 200 | 140 | 240 | 180 | 120 | – | – | – | – | – | – | – | – | – | |
| H | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
