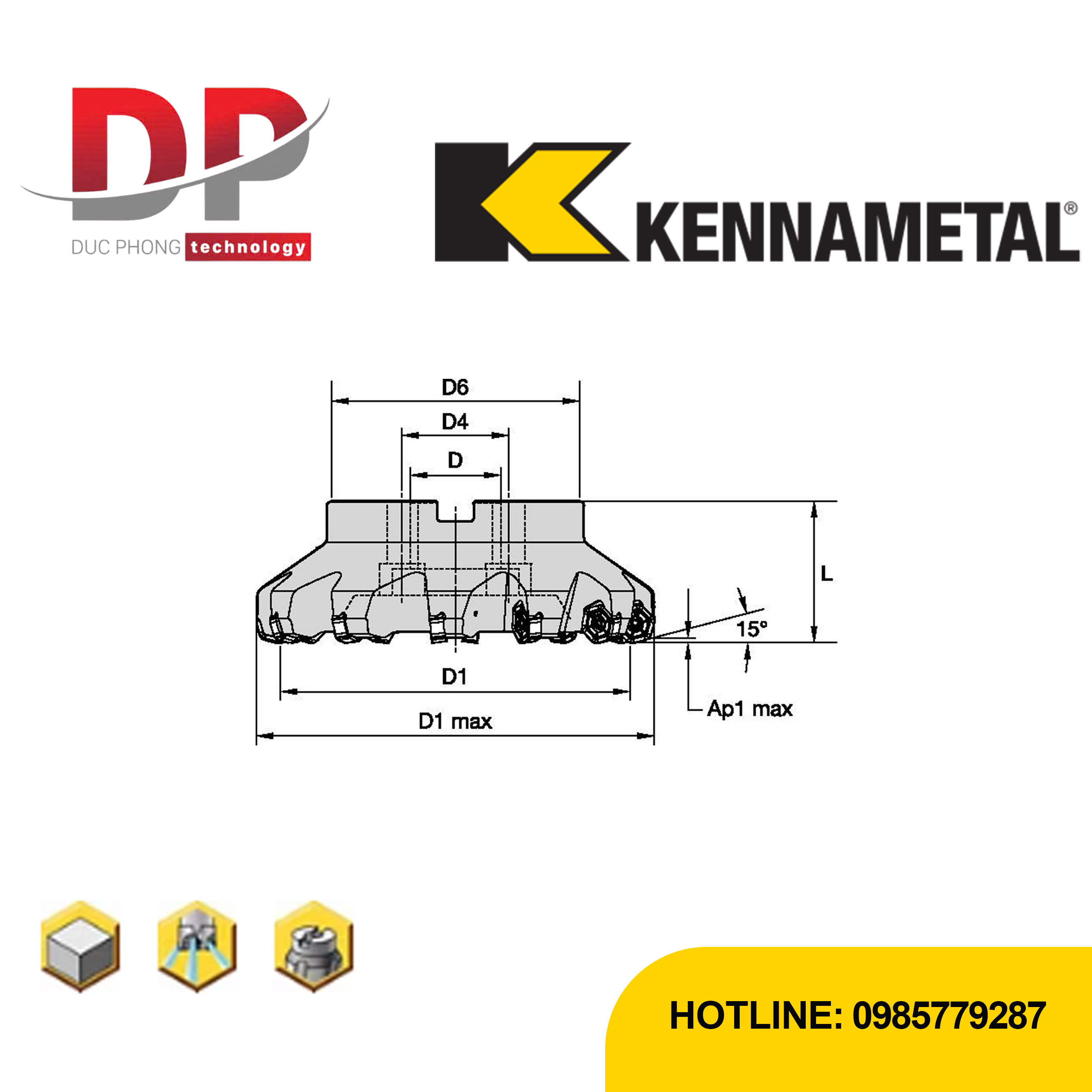

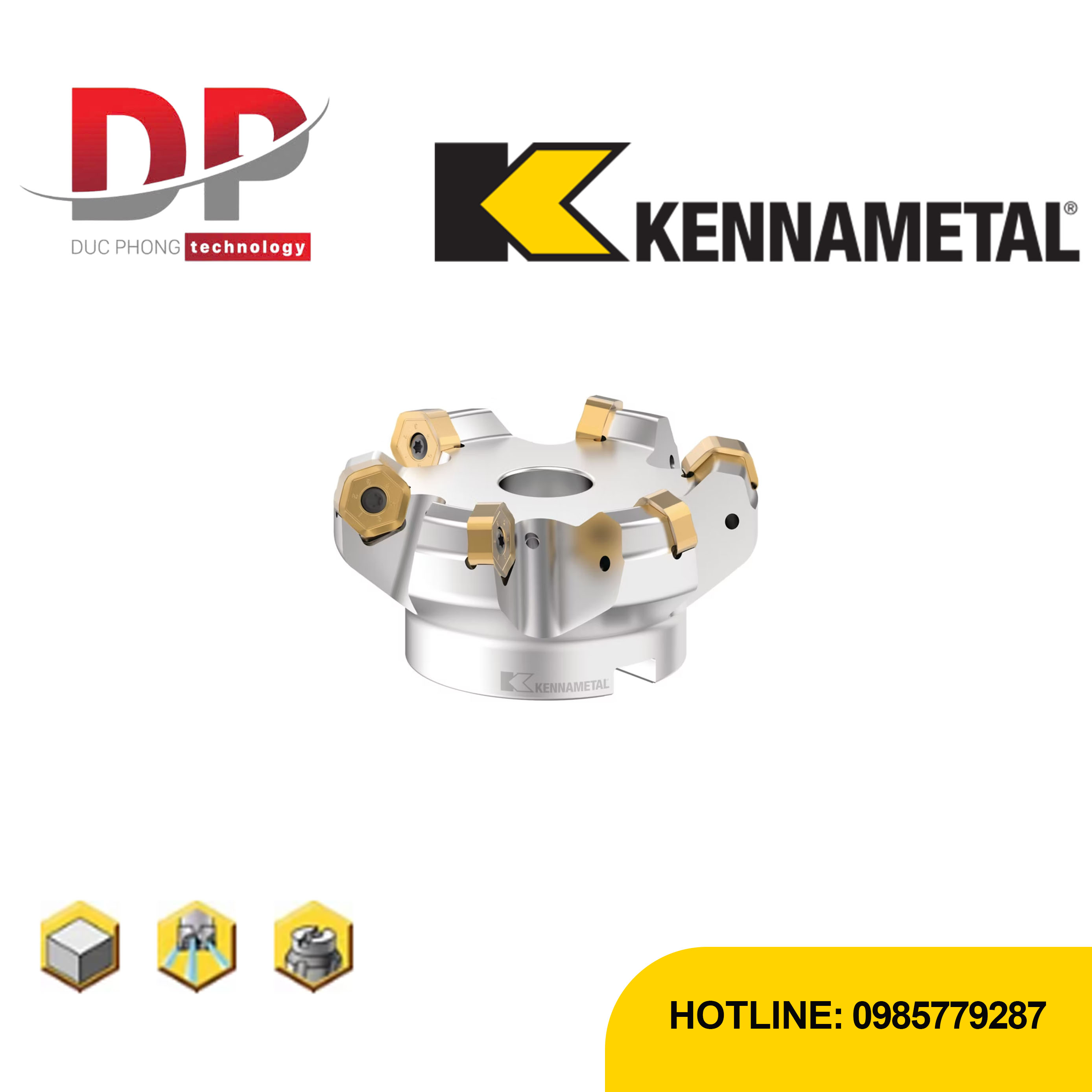

Dao phay mặt Kennametal Dodeka High-Feed 15° - hệ mét

Name: Dao phay mặt Kennametal Dodeka High-Feed 15° - hệ mét
Brand: KENNAMETAL
SKU: DA9598
Availability: InStock
Rating: 5 (1 reviews)

Mã sản phẩm: 100000597

Loại: Dao phay mặt

Danh mục: Dao phay

Thương hiệu: Kennametal

Xuất xứ: Mỹ

Hotline: 0985779287

Trụ sở chính Hà Nội:

Hà Nội
Hotline: 0985779287
Email: info@ducphong.vn
Địa chỉ: Tầng 7, Căn số 32V5A, KĐT Văn Phú, phường Phú La, quận Hà Đông, TP. Hà Nội

Thời gian làm việc: Từ 8h - 17h từ Thứ 2 đến Thứ 6. Sáng thứ 7 từ 8h-12h, nghỉ Chủ Nhật

Chi nhánh TP.HCM:

Thành phố Hồ Chí Minh
Hotline: 0985779287
Email: info@ducphong.vn
Địa chỉ: 228/55, Thống Nhất, P. 10, Q. Gò Vấp, TP. HCM

Thời gian làm việc: Từ 8h - 17h từ Thứ 2 đến Thứ 6. Sáng thứ 7 từ 8h-12h, nghỉ Chủ Nhật

Đang tải

Mã hàng	Mô tả	Giá bán (vnđ)
KSHRHF100B08RS15HN09	4042535	Liên hệ
KSHRHF125B09RS15HN09	4042536	Liên hệ
KSHRHF160C12RS15HN09	4042537	Liên hệ
KSHRHF50A04RS15HN09	4042332	Liên hệ
KSHRHF63A05RS15HN09	4042533	Liên hệ
KSHRHF80A06RS15HN09	4042534	Liên hệ

ĐẶC ĐIỂM NỔI BẬT

Đặc điểm sản phẩm:

Ứng dụng: Phay mặt, phay cạnh, gia công qua lỗ
Vật liệu gia công: Thép, gang, thép không gỉ, hợp kim chịu nhiệt
Lợi ích: Tăng tốc độ cắt, giảm lực cắt, kéo dài tuổi thọ dụng cụ, cải thiện chất lượng bề mặt

Insert Selection

Material Group	Light Machining		Medium Machining		Heavy Machining
P1–P2	.E..LD	KC522M	.S..GD	KC522M	.S..HD	KC725M
P3–P4	.E..LD	KCPK30	.S..GD	KCPK30	.S..HD	KCPK30
P5–P6	.E..LD	KC725M	.S..GD	KCPM40	.S..HD	KCPM40
M1–M2	.E..LD	KC522M	.S..GD	KCSM40	.S..HD	KCSM40
M3	.E..LD	KCSM40	.S..GD	KCSM40	.S..HD	KCPM40
K1–K2	.E..LD	KCK20B	.S..GD	KCK15	.S..HD	KCK15
K3	.E..LD	KCK20B	.S..GD	KCK20B	.S..HD	KCPK30
N1–N2	.F..LDJ	KC410M	.F..LDJ	KC410M	.F..LDJ	KC410M
N3	.F..LDJ	KC410M	.F..LDJ	KC410M	.F..LDJ	KC410M
S1–S2	.E..LD	KC725M	.S..GD	KC725M	.S..HD	KC725M
S3	.E..LD	KCSM40	.S..GD	KCSM40	.S..HD	KCSM40
S4	.E..LD	KCSM40	.S..GD	KCSM40	.S..HD	KCSM40

Feeds

Recommended Starting Feeds [mm]

	Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae)
	30%			40–100%
Insert Geometry	L	M	H	L	M	H
.F..LDJ	0.21	0.59	1.01	0.20	0.54	0.93
.E..LD	0.30	0.84	1.27	0.27	0.77	1.16
.S..GD	0.43	0.92	1.46	0.39	0.84	1.34
.S..HD	0.43	1.07	1.72	0.39	0.98	1.57
L = Light Machining; M = Medium Machining; H = Heavy Machining.

Recommended Starting Feeds [IPT]

	Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae)
	30%			40–100%
Insert Geometry	L	M	H	L	M	H
.F..LDJ	0.008	0.024	0.041	0.008	0.022	0.037
.E..LD	0.012	0.034	0.051	0.011	0.031	0.046
.S..GD	0.017	0.036	0.058	0.015	0.033	0.053
.S..HD	0.017	0.042	0.068	0.015	0.039	0.062
L = Light Machining; M = Medium Machining; H = Heavy Machining.

Speeds

Recommended Starting Speeds [m/min]

Grade		K313			KC410M			KC522M			KC725M			KCK15			KCPK30			KCKP10			KCK20B			KCPM40			KCSM30			KCSM40			KTPK20			KY3500
Chip Thickness hex Inch		Min		Max	Min		Max	Min		Max	Min		Max	Min		Max	Min		Max	Min		Max	Min		Max	Min		Max	Min		Max	Min		Max	Min		Max	Min		Max
Material Group		Max	Start	Min	Max	Start	Min	Max	Start	Min	Max	Start	Min	Max	Start	Min	Max	Start	Min	Max	Start	Min	Max	Start	Min	Max	Start	Min	Max	Start	Min	Max	Start	Min	Max	Start	Min	Max	Start	Min
P	1	–	–	–	–	–	–	395	345	325	310	275	260	–	–	–	545	475	445	370	340	310	–	–	–	355	310	295	440	380	350	420	375	345	430	360	300	–	–	–
	2	–	–	–	–	–	–	330	290	240	265	230	190	–	–	–	335	305	275	350	315	280	–	–	–	300	260	215	365	320	260	360	320	255	315	260	240	–	–	–
	3	–	–	–	–	–	–	305	260	210	240	205	170	–	–	–	305	275	245	330	280	245	–	–	–	275	235	190	340	285	234	335	275	230	290	240	215	–	–	–
	4	–	–	–	–	–	–	270	220	180	215	180	145	–	–	–	270	220	190	280	245	190	–	–	–	245	205	160	300	245	195	285	240	190	250	215	190	–	–	–
	5	–	–	–	–	–	–	220	205	180	180	160	145	–	–	–	225	200	180	250	190	150	–	–	–	205	185	160	245	220	190	240	210	180	220	200	180	–	–	–
	6	–	–	–	–	–	–	200	150	120	155	120	95	–	–	–	190	160	130	190	150	130	–	–	–	180	140	110	215	165	130	210	155	120	190	155	120	–	–	–
M	1	–	–	–	–	–	–	245	215	200	205	180	160	–	–	–	245	220	185	–	–	–	–	–	–	235	205	185	255	210	190	290	230	200	260	210	180	–	–	–
	2	–	–	–	–	–	–	220	190	180	185	155	130	–	–	–	220	190	170	–	–	–	–	–	–	210	180	150	230	190	150	260	205	170	235	200	165	–	–	–
	3	–	–	–	–	–	–	170	145	115	140	120	95	–	–	–	175	155	140	–	–	–	–	–	–	155	140	110	170	145	115	190	160	125	175	145	120	–	–	–
K	1	190	165	140	–	–	–	275	245	220	–	–	–	505	460	410	355	320	290	490	390	280	430	340	280	–	–	–	–	–	–	–	–	–	275	235	190	965	875	780
	2	–	–	–	–	–	–	215	190	180	–	–	–	400	355	330	280	250	230	335	290	225	330	270	220	–	–	–	–	–	–	–	–	–	220	180	155	760	685	635
	3	–	–	–	–	–	–	180	160	145	–	–	–	335	300	275	235	210	190	280	230	190	250	210	165	–	–	–	–	–	–	–	–	–	180	155	125	–	–	–
N	1	875	765	660	1335	1185	1090	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
	2	–	–	–	1185	1090	950	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
	3	–	–	–	1185	1090	950	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
S	1	–	–	–	–	–	–	40	35	25	35	30	25	–	–	–	–	–	–	–	–	–	–	–	–	45	40	35	50	45	35	60	45	30	–	–	–	–	–	–
	2	–	–	–	–	–	–	40	35	25	35	30	25	–	–	–	–	–	–	–	–	–	–	–	–	45	40	35	50	45	35	65	45	30	–	–	–	–	–	–
	3	–	–	–	–	–	–	50	40	25	45	35	25	–	–	–	–	–	–	–	–	–	–	–	–	60	45	35	65	50	35	75	50	35	–	–	–	–	–	–
	4	–	–	–	–	–	–	50	45	35	50	45	35	–	–	–	60	50	40	–	–	–	–	–	–	65	60	40	70	65	45	90	70	45	–	–	–	–	–	–
H	1	–	–	–	–	–	–	145	110	85	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	160	120	90	–	–	–	–	–	–	–	–	–
Recommended starting speeds are in bold type. As the average chip thickness increases, speed should be decreased. Material groups P, M, K, and H show recommended starting speeds for dry machining. For wet machining, reduce speed by 20%. Material groups N and S show recommended starting speeds for wet machining. Not recommended for dry machining.

Grade		K313			KC410M			KC522M			KC725M			KCK15			KCPK30			KCKP10			KCK20B			KCPM40			KCSM30			KCSM40			KTPK20			KY3500
Chip Thickness hex Inch		Min		Max	Min		Max	Min		Max	Min		Max	Min		Max	Min		Max	Min		Max	Min		Max	Min		Max	Min		Max	Min		Max	Min		Max	Min		Max
Material Group		Max	Start	Min	Max	Start	Min	Max	Start	Min	Max	Start	Min	Max	Start	Min	Max	Start	Min	Max	Start	Min	Max	Start	Min	Max	Start	Min	Max	Start	Min	Max	Start	Min	Max	Start	Min	Max	Start	Min
P	1	–	–	–	–	–	–	1295	1115	1065	1015	900	855	–	–	–	1790	1560	1460	1215	1115	1015	–	–	–	1165	1015	970	1445	1245	1150	1380	1230	1130	1410	1180	985	–	–	–
	2	–	–	–	–	–	–	1085	950	785	870	755	625	–	–	–	1100	1000	900	1150	1035	920	–	–	–	985	855	705	1200	1050	855	1180	1050	835	1035	855	785	–	–	–
	3	–	–	–	–	–	–	1000	855	690	785	675	560	–	–	–	1000	900	805	1085	920	805	–	–	–	900	770	625	1115	935	770	1100	900	755	950	785	705	–	–	–
	4	–	–	–	–	–	–	885	720	590	705	590	475	–	–	–	885	720	625	920	805	625	–	–	–	805	675	525	985	805	640	935	785	625	820	705	625	–	–	–
	5	–	–	–	–	–	–	720	675	590	590	525	475	–	–	–	740	655	590	820	625	490	–	–	–	675	605	525	805	720	625	785	690	590	720	655	590	–	–	–
	6	–	–	–	–	–	–	655	490	395	510	395	310	–	–	–	625	525	425	625	490	425	–	–	–	590	460	360	705	540	425	690	510	395	625	510	395	–	–	–
M	1	–	–	–	–	–	–	805	705	655	675	590	525	–	–	–	805	720	605	–	–	–	–	–	–	770	675	605	835	690	625	950	755	655	855	690	590	–	–	–
	2	–	–	–	–	–	–	720	625	590	605	510	425	–	–	–	720	625	560	–	–	–	–	–	–	690	590	490	755	625	490	855	675	560	770	655	540	–	–	–
	3	–	–	–	–	–	–	590	525	475	460	395	310	–	–	–	575	510	460	–	–	–	–	–	–	510	460	360	560	475	375	625	525	410	575	475	395	–	–	–
K	1	625	540	460	–	–	–	900	805	720	–	–	–	1655	1510	1345	1165	1050	950	1610	1280	920	1410	1115	920	–	–	–	–	–	–	–	–	–	900	770	625	3165	2870	2560
	2	–	–	–	–	–	–	705	625	590	–	–	–	1310	1165	1085	920	820	755	1100	950	740	1085	885	720	–	–	–	–	–	–	–	–	–	720	590	510	2495	2245	2085
	3	–	–	–	–	–	–	590	525	475	–	–	–	1100	985	900	700	690	625	920	755	625	820	690	540	–	–	–	–	–	–	–	–	–	590	510	410	–	–	–
N	1	2870	2510	2165	4380	3890	3575	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
	2	–	–	–	3890	3575	3115	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
	3	–	–	–	3890	3575	3115	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
S	1	–	–	–	–	–	–	130	115	80	115	100	80	–	–	–	–	–	–	–	–	–	–	–	–	150	130	115	165	150	115	195	150	100	–	–	–	–	–	–
	2	–	–	–	–	–	–	130	115	80	115	100	80	–	–	–	–	–	–	–	–	–	–	–	–	150	130	115	165	150	115	215	150	100	–	–	–	–	–	–
	3	–	–	–	–	–	–	165	130	80	150	115	80	–	–	–	–	–	–	–	–	–	–	–	–	195	150	115	215	165	115	245	165	115	–	–	–	–	–	–
	4	–	–	–	–	–	–	165	150	115	165	150	115	–	–	–	195	165	130	–	–	–	–	–	–	215	195	130	230	215	150	295	230	150	–	–	–	–	–	–
H	1	–	–	–	–	–	–	475	360	280	–	–	–	–	–	–	–	–	–	525	395	310	–	–	–	–	–	–	525	395	295	–	–	–	–	–	–	–	–	–
Recommended starting speeds are in bold type. As the average chip thickness increases, speed should be decreased. Material groups P, M, K, and H show recommended starting speeds for dry machining. For wet machining, reduce speed by 20%. Material groups N and S show recommended starting speeds for wet machining. Not recommended for dry machining.
