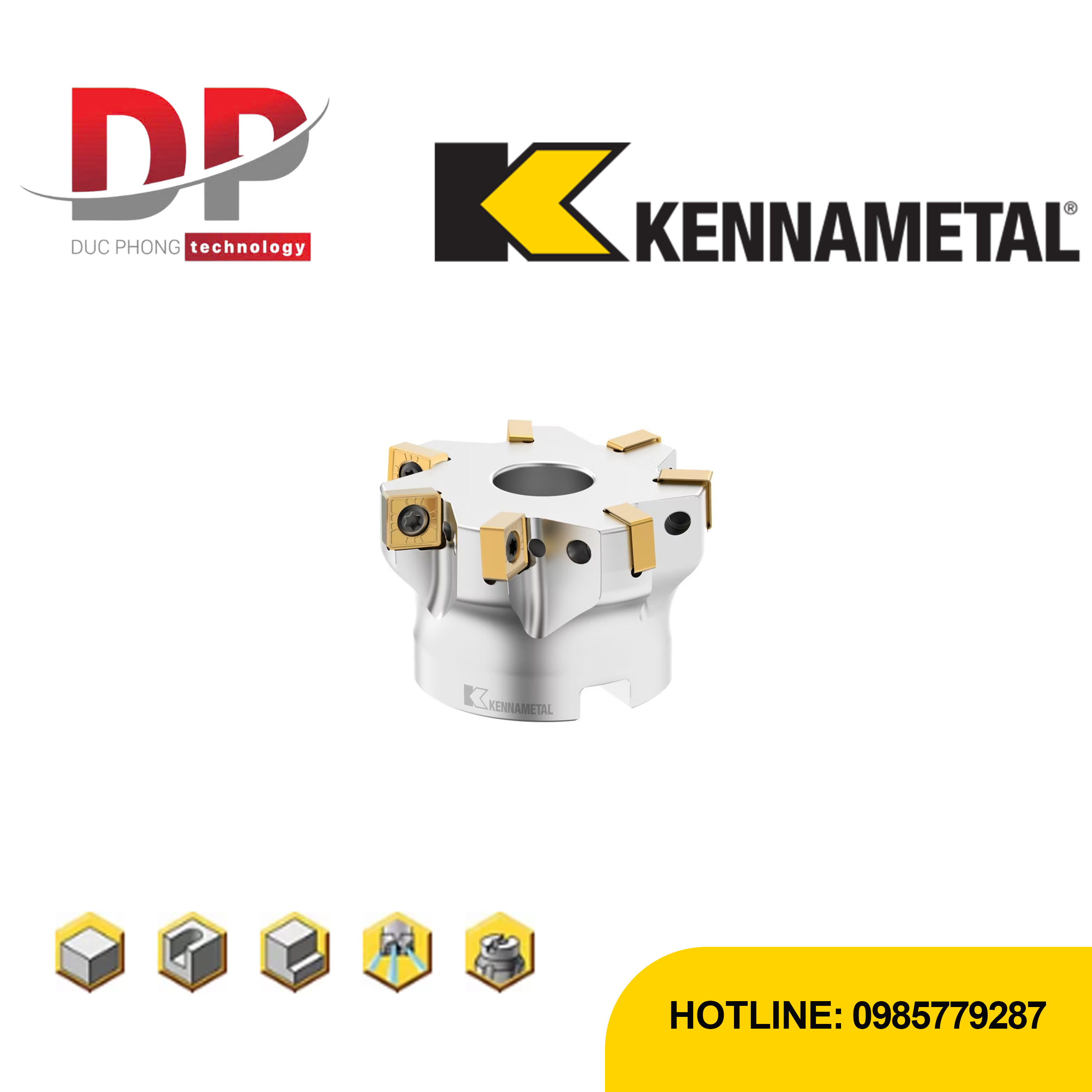

Dao phay mặt Kennametal KSSM8+™ IC10 – Bước ren mịn – Hệ mét

Name: Dao phay mặt Kennametal KSSM8+™ IC10 – Bước ren mịn – Hệ mét
Brand: KENNAMETAL
SKU: DA9720
Availability: InStock
Rating: 5 (1 reviews)

Mã sản phẩm: 100147720

Loại: Dao phay mặt

Danh mục: Dao phay

Thương hiệu: Kennametal

Xuất xứ: Mỹ

Hotline: 0985779287

Trụ sở chính Hà Nội:

Hà Nội
Hotline: 0985779287
Email: info@ducphong.vn
Địa chỉ: Tầng 7, Căn số 32V5A, KĐT Văn Phú, phường Phú La, quận Hà Đông, TP. Hà Nội

Thời gian làm việc: Từ 8h - 17h từ Thứ 2 đến Thứ 6. Sáng thứ 7 từ 8h-12h, nghỉ Chủ Nhật

Chi nhánh TP.HCM:

Thành phố Hồ Chí Minh
Hotline: 0985779287
Email: info@ducphong.vn
Địa chỉ: 228/55, Thống Nhất, P. 10, Q. Gò Vấp, TP. HCM

Thời gian làm việc: Từ 8h - 17h từ Thứ 2 đến Thứ 6. Sáng thứ 7 từ 8h-12h, nghỉ Chủ Nhật

Đang tải

Mã hàng	Mô tả	Giá bán (vnđ)
KSSM88D050Z05SN10	5420163	Liên hệ
KSSM88D050Z06SN10	5420164	Liên hệ
KSSM88D063Z05SN10	5420165	Liên hệ
KSSM88D063Z07SN10	5420166	Liên hệ
KSSM88D080Z07SN10	5420167	Liên hệ
KSSM88D080Z09SN10	5420168	Liên hệ
KSSM88D100Z08SN10	5420169	Liên hệ
KSSM88D100Z11SN10	5420250	Liên hệ

ĐẶC ĐIỂM NỔI BẬT

Đặc điểm sản phẩm:

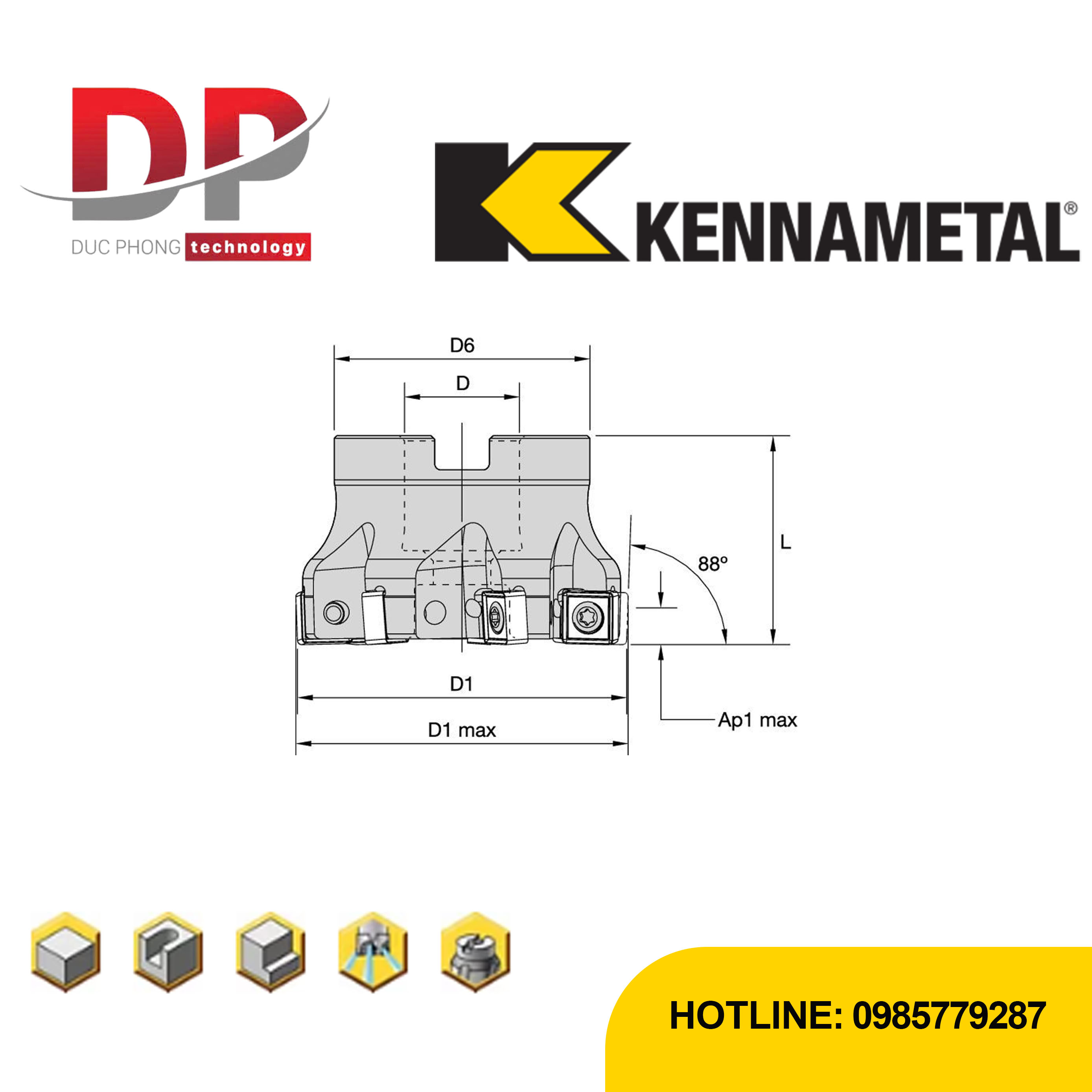

Độ nghiêng dao: Dao phay có góc nghiêng 88°, giúp gia công các chi tiết có độ chính xác cao.
Mảnh cắt hai mặt: Sử dụng mảnh cắt hai mặt, mỗi mảnh có 8 cạnh cắt, giúp giảm chi phí và tăng hiệu quả gia công.
Hệ thống làm mát trong: Dao phay được trang bị hệ thống làm mát trong, giúp giảm nhiệt độ trong quá trình gia công và tăng tuổi thọ dụng cụ.
Ứng dụng đa dạng: Phù hợp cho các ứng dụng phay mặt, phay rãnh vuông, phay cạnh và phay qua làm mát.

Insert Selection

Insert Selection Guide

KSSM8+™ • IC10 • Insert Selection Guide
Material Group	Light Machining		General Purpose		Heavy Machining
	(Light geometry)				(Strong geometry)
	wear resistance				toughness
	Geometry	Grade	Geometry	Grade	Geometry	Grade
P1–P2	.E..LD	KC725M	.S..GD	KCPK30	.S..GD	KCPM40
P3–P4	.E..LD	KCPK30	.S..GD	KCPK30	.S..GD	KCPK30
P5–P6	.E..LD	KC725M	.S..GD	KCPM40	.S..GD	KCPM40
M1–M2	.E..LD	KC725M	.E..LD	KC725M	.S..GD	KCPM40
M3	.E..LD	KC725M	.S..GD	KCPM40	.S..GD	KCPM40
K1–K2	.E..LD	KCK20B	.S..GD	KCK15	.S..GD	KCK15
K3	.E..LD	KCK20B	.S..GD	KCK15	.S..GD	KCPK30
N1–N2	–	–	–	–	–	–
N3	–	–	–	–	–	–
S1–S2	.E..LD	KC725M	.E..LD	KC725M	.E..LD	KC725M
S3	.E..LD	KC725M	.E..LD	KC725M	.S..GD	KCPM40
S4	.E..LD	KC725M	.E..LD	KC725M	.E..LD	KC725M
H1	–	–	–	–	–	–

Feeds

KSSM8+™ • IC10 Metric • Recommended Starting Feeds [mm/th]
Insert Geometry	Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae)
	30%			40–100%
	L	M	H	L	M	H
.E..LD	0,08	0,19	0,33	0,08	0,18	0,30
.S..GD	0,11	0,24	0,38	0,10	0,22	0,35
L = Light Machining; M = Medium Machining; H = Heavy Machining NOTE: Use "Light Machining" values as starting feed rate.

KSSM8+™ • IC10 Inch • Recommended Starting Feeds [IPT]
Insert Geometry	Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae)
	30%			40–100%
	L	M	H	L	M	H
.E..LD	0.003	0.008	0.013	0.003	0.007	0.012
.S..GD	0.004	0.009	0.015	0.004	0.009	0.014
L = Light Machining; M = Medium Machining; H = Heavy Machining NOTE: Use "Light Machining" values as starting feed rate.

Speeds

KSSM8+™ • IC10 • Recommended Starting Speed [m/min]
Grade		KC725M			KCK15			KCPK30			KCK20B			KCPM40
Chip Thickness hex mm		Min		Max	Min		Max	Min		Max	Min		Max	Min		Max
Material Group		Max	Start	Min	Max	Start	Min	Max	Start	Min	Max	Start	Min	Max	Start	Min
P	1	260	230	215	–	–	–	455	395	370	–	–	–	295	260	245
	2	220	190	160	–	–	–	280	255	230	–	–	–	250	215	180
	3	200	170	140	–	–	–	255	230	205	–	–	–	230	195	160
	4	180	150	120	–	–	–	225	185	160	–	–	–	205	170	135
	5	150	135	120	–	–	–	190	170	150	–	–	–	170	155	135
	6	130	100	80	–	–	–	160	135	110	–	–	–	150	115	90
M	1	170	150	135	–	–	–	205	185	155	–	–	–	195	170	155
	2	155	130	110	–	–	–	185	160	140	–	–	–	175	150	125
	3	115	100	80	–	–	–	145	130	115	–	–	–	130	115	90
K	1	–	–	–	420	385	340	295	265	240	360	290	245	–	–	–
	2	–	–	–	335	295	275	235	210	190	280	230	195	–	–	–
	3	–	–	–	280	250	230	195	175	160	210	175	140	–	–	–
N	1	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
	2	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
	3	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
S	1	35	30	25	–	–	–	–	–	–	–	–	–	40	35	30
	2	35	30	25	–	–	–	–	–	–	–	–	–	40	35	30
	3	45	35	25	–	–	–	–	–	–	–	–	–	50	40	30
	4	50	45	30	–	–	–	50	45	35	–	–	–	55	50	35
H	1	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
As the average chip thickness increases, speed should be decreased. Material groups P, M, K and H show recommended starting speeds for dry machining. For wet machining, reduce speed by 20%. Material groups N and S show recommended starting speeds for wet machining. Not recommended for dry machining.

KSSM8+™ • IC10 • Recommended Starting Speed [SFM]
Grade		KC725M			KCK15			KCPK30			KCK20B			KCPM40
Chip Thickness hex Inch		Min		Max	Min		Max	Min		Max	Min		Max	Min		Max
Material Group		Max	Start	Min	Max	Start	Min	Max	Start	Min	Max	Start	Min	Max	Start	Min
P	1	260	230	215	–	–	–	455	395	370	–	–	–	295	260	245
	2	220	190	160	–	–	–	280	255	230	–	–	–	250	215	180
	3	200	170	140	–	–	–	255	230	205	–	–	–	230	195	160
	4	180	150	120	–	–	–	225	185	160	–	–	–	205	170	135
	5	150	135	120	–	–	–	190	170	150	–	–	–	170	155	135
	6	130	100	80	–	–	–	160	135	110	–	–	–	150	115	90
M	1	170	150	135	–	–	–	205	185	155	–	–	–	195	170	155
	2	155	130	110	–	–	–	185	160	140	–	–	–	175	150	125
	3	115	100	80	–	–	–	145	130	115	–	–	–	130	115	90
K	1	–	–	–	420	385	340	295	265	240	360	290	245	–	–	–
	2	–	–	–	335	295	275	235	210	190	280	230	195	–	–	–
	3	–	–	–	280	250	230	195	175	160	210	175	140	–	–	–
N	1	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
	2	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
	3	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
S	1	35	30	25	–	–	–	–	–	–	–	–	–	40	35	30
	2	35	30	25	–	–	–	–	–	–	–	–	–	40	35	30
	3	45	35	25	–	–	–	–	–	–	–	–	–	50	40	30
	4	50	45	30	–	–	–	50	45	35	–	–	–	55	50	35
H	1	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
As the average chip thickness increases, speed should be decreased. Material groups P, M, K and H show recommended starting speeds for dry machining. For wet machining, reduce speed by 20%. Material groups N and S show recommended starting speeds for wet machining. Not recommended for dry machining.
