Dao phay ngón EconoStar 2 me Series ESRR712 - WIDIN (Dành cho thép độ cứng cao)

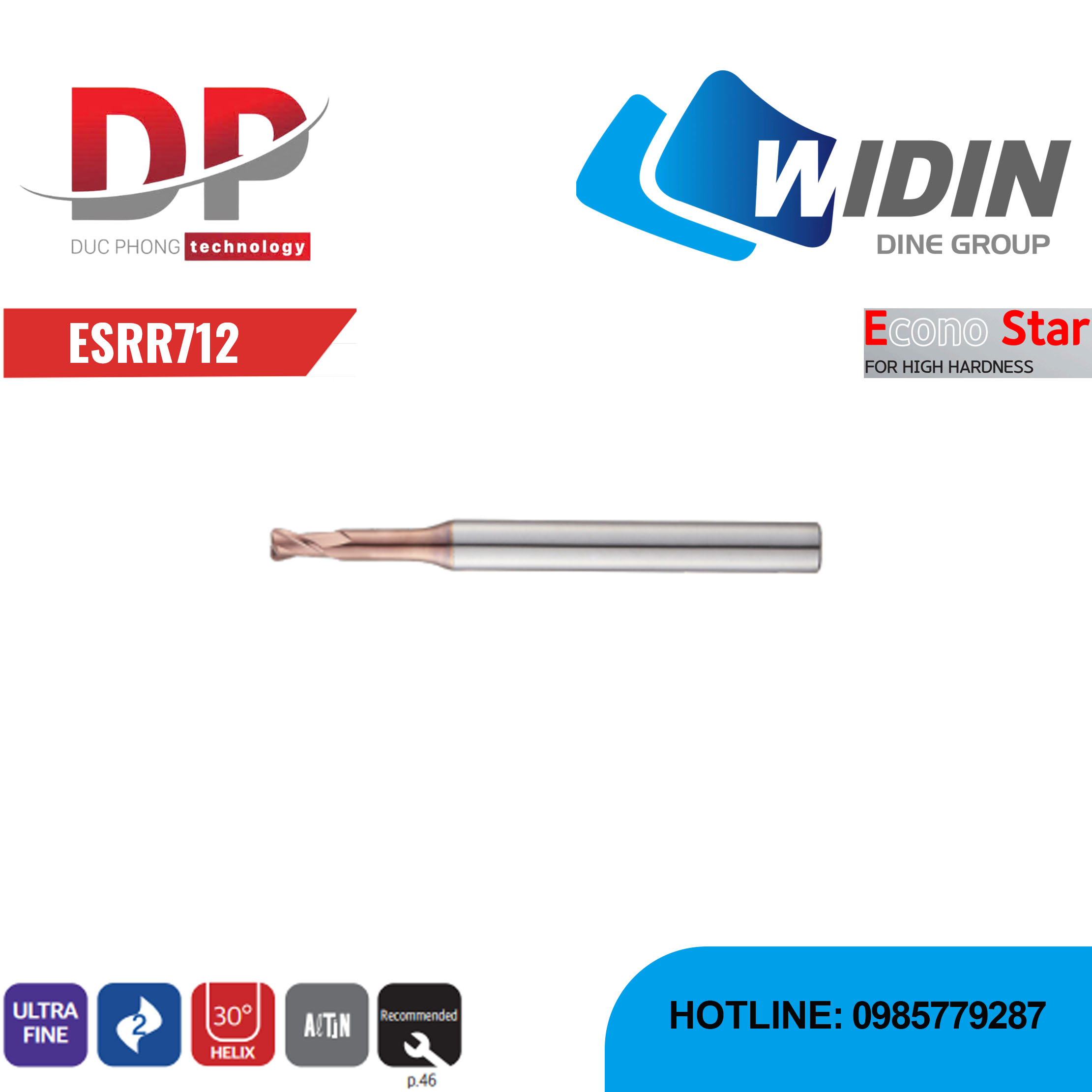

Mô tả sản phẩm dao phay ngón EconoStar 2 me Series ESRR712



Dao phay ngón EconoStar 2 me Series ESRR712 là dòng dao phay ngón đầu bo góc R với 2 me cắt, được thiết kế đặc biệt cổ dao dạng rib type để gia công các vật liệu có độ cứng cao.

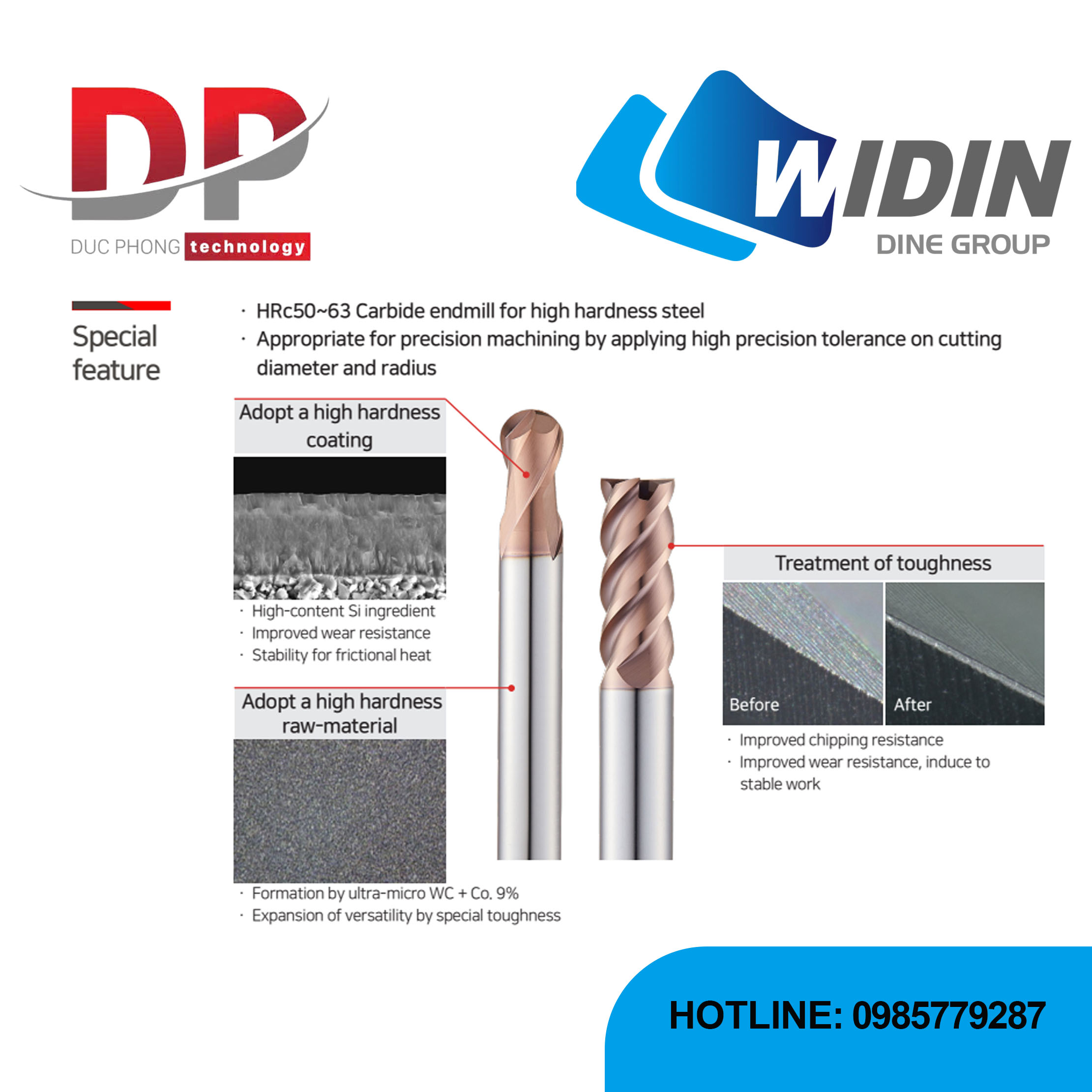

Tính năng nổi bật

• Dao phay ngón EconoStar 2 me Series ESRR712 thiết kế lưỡi cắt được tối ưu hóa cho đặc tính của các vật liệu có độ cứng cao, đảm bảo hiệu suất cắt gọt hiệu quả.
• Sản phẩm có nhiều thông số về góc bo R và chiều dài làm việc, đáp ứng linh hoạt các yêu cầu gia công khác nhau.
• Cổ dao dạng rib type giúp tăng cường độ cứng, giảm thiểu nguy cơ gãy vỡ và cải thiện độ ổn định trong quá trình gia công.
• Cấu tạo từ WC siêu mịn và 9% Co, tăng độ cứng và khả năng chống mài mòn.
• Lớp phủ với tỷ lệ Si lớn giúp tăng độ cứng ở nhiệt độ cao và khả năng chịu nhiệt, đảm bảo hiệu suất ổn định khi làm việc ở nhiệt độ ma sát cao.
• Nhờ xử lý tăng độ dẻo dai, dao có khả năng chống sứt mẻ tốt hơn, kéo dài tuổi thọ và đảm bảo quá trình cắt gọt ổn định.

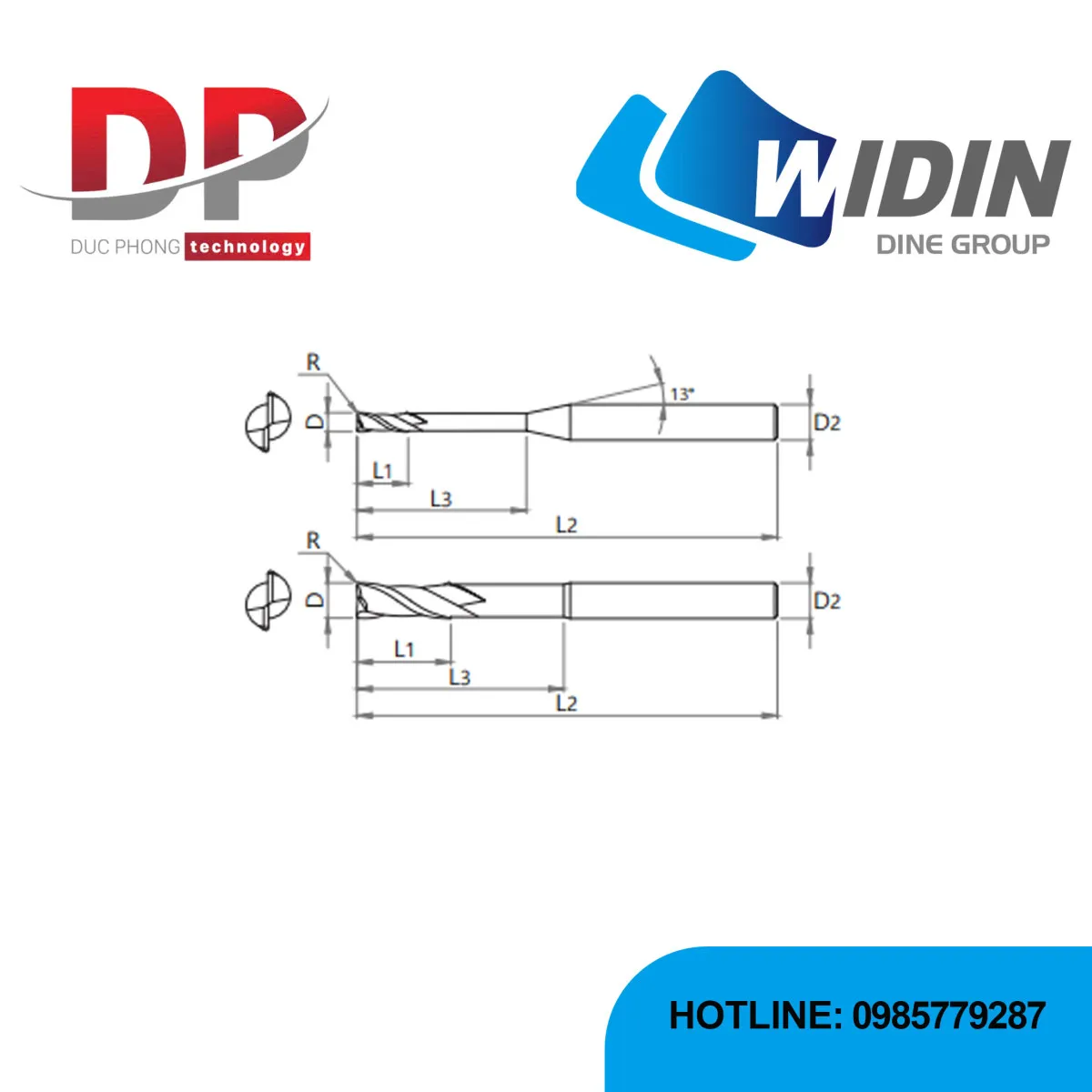

Thông số

EDP No.	D	R	L1	L3	L2	D2
ESRR712002002005	0.2	0.02	0.2	0.5	40	4
ESRR71200200201	0.2	0.02	0.2	1	40	4
ESRR712002002015	0.2	0.02	0.2	1.5	40	4
ESRR712002005005	0.2	0.05	0.2	0.5	40	4
ESRR71200200501	0.2	0.05	0.2	1	40	4
ESRR712002005015	0.2	0.05	0.2	1.5	40	4
ESRR71200300201	0.3	0.02	0.3	1	40	4
ESRR71200300202	0.3	0.02	0.3	2	40	4
ESRR71200300203	0.3	0.02	0.3	3	40	4
ESRR71200300501	0.3	0.05	0.3	1	40	4
ESRR71200300502	0.3	0.05	0.3	2	40	4
ESRR71200300503	0.3	0.05	0.3	3	40	4
ESRR71200400201	0.4	0.02	0.4	1	40	4
ESRR71200400202	0.4	0.02	0.4	2	40	4
ESRR71200400203	0.4	0.02	0.4	3	40	4
ESRR71200400204	0.4	0.02	0.4	4	40	4
ESRR71200400501	0.4	0.05	0.4	1	40	4
ESRR71200400502	0.4	0.05	0.4	2	40	4
ESRR71200400503	0.4	0.05	0.4	3	40	4
ESRR71200400504	0.4	0.05	0.4	4	40	4
ESRR71200401001	0.4	0.1	0.4	1	40	4
ESRR712004010015	0.4	0.1	0.4	1.5	40	4
ESRR71200401002	0.4	0.1	0.4	2	40	4
ESRR71200401003	0.4	0.1	0.4	3	40	4
ESRR71200401004	0.4	0.1	0.4	4	40	4
ESRR71200500201	0.5	0.02	0.5	1	45	4
ESRR712005002015	0.5	0.02	0.5	1.5	45	4
ESRR71200500202	0.5	0.02	0.5	2	45	4
ESRR712005002025	0.5	0.02	0.5	2.5	45	4
ESRR71200500203	0.5	0.02	0.5	3	45	4

2 FLUTES RIB RADIUS ENDMILL

EDP No.	D	R	L1	L3	L2	D2
ESRR71200500204	0.5	0.02	0.5	4	45	4
ESRR71200500205	0.5	0.02	0.5	5	45	4
ESRR71200500206	0.5	0.02	0.5	6	45	4
ESRR71200500208	0.5	0.02	0.5	8	45	4
ESRR71200500210	0.5	0.02	0.5	10	45	4
ESRR71200500501	0.5	0.05	0.5	1	45	4
ESRR712005005015	0.5	0.05	0.5	1.5	45	4
ESRR71200500502	0.5	0.05	0.5	2	45	4
ESRR712005005025	0.5	0.05	0.5	2.5	45	4
ESRR71200500503	0.5	0.05	0.5	3	45	4
ESRR71200500504	0.5	0.05	0.5	4	45	4
ESRR71200500505	0.5	0.05	0.5	5	45	4
ESRR71200500506	0.5	0.05	0.5	6	45	4
ESRR71200500508	0.5	0.05	0.5	8	45	4
ESRR71200500510	0.5	0.05	0.5	10	45	4
ESRR71200501001	0.5	0.1	0.5	1	45	4
ESRR712005010015	0.5	0.1	0.5	1.5	45	4
ESRR71200501002	0.5	0.1	0.5	2	45	4
ESRR712005010025	0.5	0.1	0.5	2.5	45	4
ESRR71200501003	0.5	0.1	0.5	3	45	4
ESRR71200501004	0.5	0.1	0.5	4	45	4
ESRR71200501005	0.5	0.1	0.5	5	45	4
ESRR71200501006	0.5	0.1	0.5	6	45	4
ESRR71200501008	0.5	0.1	0.5	8	45	4
ESRR71200501010	0.5	0.1	0.5	10	45	4
ESRR71200600202	0.6	0.02	0.6	2	45	4
ESRR71200600203	0.6	0.02	0.6	3	45	4
ESRR71200600204	0.6	0.02	0.6	4	45	4
ESRR71200600206	0.6	0.02	0.6	6	45	4
ESRR71200600208	0.6	0.02	0.6	8	45	4

2 FLUTES RIB RADIUS ENDMILL

EDP No.	D	R	L1	L3	L2	D2
ESRR71200600210	0.6	0.02	0.6	10	45	4
ESRR71200600212	0.6	0.02	0.6	12	50	4
ESRR71200600502	0.6	0.05	0.6	2	45	4
ESRR71200600503	0.6	0.05	0.6	3	45	4
ESRR71200600504	0.6	0.05	0.6	4	45	4
ESRR71200600506	0.6	0.05	0.6	6	45	4
ESRR71200600508	0.6	0.05	0.6	8	45	4
ESRR71200600510	0.6	0.05	0.6	10	45	4
ESRR71200600512	0.6	0.05	0.6	12	50	4
ESRR71200601002	0.6	0.1	0.6	2	45	4
ESRR71200601003	0.6	0.1	0.6	3	45	4
ESRR71200601004	0.6	0.1	0.6	4	45	4
ESRR71200601006	0.6	0.1	0.6	6	45	4
ESRR71200601008	0.6	0.1	0.6	8	45	4
ESRR71200601010	0.6	0.1	0.6	10	45	4
ESRR71200601012	0.6	0.1	0.6	12	50	4
ESRR71200701002	0.7	0.1	0.7	2	45	4
ESRR71200701004	0.7	0.1	0.7	4	45	4
ESRR71200701006	0.7	0.1	0.7	6	45	4
ESRR71200701008	0.7	0.1	0.7	8	45	4
ESRR71200701010	0.7	0.1	0.7	10	45	4
ESRR71200800202	0.8	0.02	0.8	2	45	4
ESRR71200800204	0.8	0.02	0.8	4	45	4
ESRR71200800206	0.8	0.02	0.8	6	45	4
ESRR71200800208	0.8	0.02	0.8	8	45	4
ESRR71200800210	0.8	0.02	0.8	10	45	4
ESRR71200800212	0.8	0.02	0.8	12	50	4
ESRR71200800502	0.8	0.05	0.8	2	45	4
ESRR71200800504	0.8	0.05	0.8	4	45	4
ESRR71200800506	0.8	0.05	0.8	6	45	4
ESRR71200800508	0.8	0.05	0.8	8	45	4
ESRR71200800510	0.8	0.05	0.8	10	45	4
ESRR71200800512	0.8	0.05	0.8	12	50	4
ESRR71200801002	0.8	0.1	0.8	2	45	4
ESRR71200801004	0.8	0.1	0.8	4	45	4
ESRR71200801006	0.8	0.1	0.8	6	45	4
ESRR71200801008	0.8	0.1	0.8	8	45	4
ESRR71200801010	0.8	0.1	0.8	10	45	4
ESRR71200801012	0.8	0.1	0.8	12	50	4
ESRR71200802002	0.8	0.2	0.8	2	45	4
ESRR71200802004	0.8	0.2	0.8	4	45	4
ESRR71200802006	0.8	0.2	0.8	6	45	4
ESRR71200802008	0.8	0.2	0.8	8	45	4
ESRR71200802010	0.8	0.2	0.8	10	45	4
ESRR71200802012	0.8	0.2	0.8	12	50	4
ESRR71201000204	1	0.02	1	4	45	4
ESRR71201000206	1	0.02	1	6	45	4

2 FLUTES RIB RADIUS ENDMILL

EDP No.	D (mm)	R (mm)	L1 (mm)	L3 (mm)	L2 (mm)	D2 (mm)
ESRR71201000208	1	0.02	1	8	45	4
ESRR71201000210	1	0.02	1	10	50	4
ESRR71201000212	1	0.02	1	12	50	4
ESRR71201000214	1	0.02	1	14	50	4
ESRR71201000216	1	0.02	1	16	50	4
ESRR71201000220	1	0.02	1	20	50	4
ESRR71201000504	1	0.05	1	4	45	4
ESRR71201000506	1	0.05	1	6	45	4
ESRR71201000508	1	0.05	1	8	45	4
ESRR71201000510	1	0.05	1	10	50	4
ESRR71201000512	1	0.05	1	12	50	4
ESRR71201000514	1	0.05	1	14	50	4
ESRR71201000516	1	0.05	1	16	50	4
ESRR71201000520	1	0.05	1	20	50	4
ESRR71201001004	1	0.1	1	4	45	4
ESRR71201001006	1	0.1	1	6	45	4
ESRR71201001008	1	0.1	1	8	45	4
ESRR71201001010	1	0.1	1	10	50	4
ESRR71201001012	1	0.1	1	12	50	4
ESRR71201001014	1	0.1	1	14	50	4
ESRR71201001016	1	0.1	1	16	50	4
ESRR71201001020	1	0.1	1	20	50	4
ESRR71201002004	1	0.2	1	4	45	4
ESRR71201002006	1	0.2	1	6	45	4
ESRR71201002008	1	0.2	1	8	45	4
ESRR71201002010	1	0.2	1	10	50	4
ESRR71201002012	1	0.2	1	12	50	4
ESRR71201002014	1	0.2	1	14	50	4
ESRR71201002016	1	0.2	1	16	50	4
ESRR71201002020	1	0.2	1	20	50	4
ESRR71201003004	1	0.3	1	4	45	4
ESRR71201003006	1	0.3	1	6	45	4
ESRR71201003008	1	0.3	1	8	45	4
ESRR71201003010	1	0.3	1	10	50	4
ESRR71201003012	1	0.3	1	12	50	4
ESRR71201003014	1	0.3	1	14	50	4
ESRR71201003016	1	0.3	1	16	50	4
ESRR71201003020	1	0.3	1	20	50	4
ESRR71201200204	1.2	0.02	1.2	4	45	4
ESRR71201200206	1.2	0.02	1.2	6	45	4
ESRR71201200208	1.2	0.02	1.2	8	45	4
ESRR71201200210	1.2	0.02	1.2	10	50	4
ESRR71201200212	1.2	0.02	1.2	12	50	4
ESRR71201200214	1.2	0.02	1.2	14	50	4
ESRR71201200216	1.2	0.02	1.2	16	50	4
ESRR71201200220	1.2	0.02	1.2	20	50	4
ESRR71201200504	1.2	0.05	1.2	4	45	4

2 FLUTES RIB RADIUS ENDMILL

EDP No.	D (mm)	R (mm)	L1 (mm)	L3 (mm)	L2 (mm)	D2 (mm)
ESRR71201200506	1.2	0.05	1.2	6	45	4
ESRR71201200508	1.2	0.05	1.2	8	45	4
ESRR71201200510	1.2	0.05	1.2	10	50	4
ESRR71201200512	1.2	0.05	1.2	12	50	4
ESRR71201200514	1.2	0.05	1.2	14	50	4
ESRR71201200516	1.2	0.05	1.2	16	50	4
ESRR71201200520	1.2	0.05	1.2	20	50	4
ESRR71201201004	1.2	0.1	1.2	4	45	4
ESRR71201201006	1.2	0.1	1.2	6	45	4
ESRR71201201008	1.2	0.1	1.2	8	45	4
ESRR71201201010	1.2	0.1	1.2	10	50	4
ESRR71201201012	1.2	0.1	1.2	12	50	4
ESRR71201201014	1.2	0.1	1.2	14	50	4
ESRR71201201016	1.2	0.1	1.2	16	50	4
ESRR71201201020	1.2	0.1	1.2	20	50	4
ESRR71201202004	1.2	0.2	1.2	4	45	4
ESRR71201202006	1.2	0.2	1.2	6	45	4
ESRR71201202008	1.2	0.2	1.2	8	45	4
ESRR71201202010	1.2	0.2	1.2	10	50	4
ESRR71201202012	1.2	0.2	1.2	12	50	4
ESRR71201202014	1.2	0.2	1.2	14	50	4
ESRR71201202016	1.2	0.2	1.2	16	50	4
ESRR71201202020	1.2	0.2	1.2	20	50	4
ESRR71201203004	1.2	0.3	1.2	4	45	4
ESRR71201203006	1.2	0.3	1.2	6	45	4
ESRR71201203008	1.2	0.3	1.2	8	45	4
ESRR71201203010	1.2	0.3	1.2	10	50	4
ESRR71201203012	1.2	0.3	1.2	12	50	4
ESRR71201203014	1.2	0.3	1.2	14	50	4
ESRR71201203016	1.2	0.3	1.2	16	50	4
ESRR71201203020	1.2	0.3	1.2	20	50	4
ESRR71201500204	1.5	0.02	1.5	4	45	4
ESRR71201500206	1.5	0.02	1.5	6	45	4
ESRR71201500208	1.5	0.02	1.5	8	45	4
ESRR71201500210	1.5	0.02	1.5	10	50	4
ESRR71201500212	1.5	0.02	1.5	12	50	4
ESRR71201500214	1.5	0.02	1.5	14	50	4
ESRR71201500216	1.5	0.02	1.5	16	50	4
ESRR71201500220	1.5	0.02	1.5	20	50	4
ESRR71201500504	1.5	0.05	1.5	4	45	4
ESRR71201500506	1.5	0.05	1.5	6	45	4
ESRR71201500508	1.5	0.05	1.5	8	45	4
ESRR71201500510	1.5	0.05	1.5	10	50	4
ESRR71201500512	1.5	0.05	1.5	12	50	4
ESRR71201500514	1.5	0.05	1.5	14	50	4
ESRR71201500516	1.5	0.05	1.5	16	50	4
ESRR71201500520	1.5	0.05	1.5	20	50	4

2 FLUTES RIB RADIUS ENDMILL

EDP No.	D (mm)	R (mm)	L1 (mm)	L3 (mm)	L2 (mm)	D2 (mm)
ESRR71201501004	1.5	0.1	1.5	4	45	4
ESRR71201501006	1.5	0.1	1.5	6	45	4
ESRR71201501008	1.5	0.1	1.5	8	45	4
ESRR71201501010	1.5	0.1	1.5	10	50	4
ESRR71201501012	1.5	0.1	1.5	12	50	4
ESRR71201501014	1.5	0.1	1.5	14	50	4
ESRR71201501016	1.5	0.1	1.5	16	50	4
ESRR71201501020	1.5	0.1	1.5	20	50	4
ESRR71201502004	1.5	0.2	1.5	4	45	4
ESRR71201502006	1.5	0.2	1.5	6	45	4
ESRR71201502008	1.5	0.2	1.5	8	45	4
ESRR71201502010	1.5	0.2	1.5	10	50	4
ESRR71201502012	1.5	0.2	1.5	12	50	4
ESRR71201502014	1.5	0.2	1.5	14	50	4
ESRR71201502016	1.5	0.2	1.5	16	50	4
ESRR71201502020	1.5	0.2	1.5	20	50	4
ESRR71201503004	1.5	0.3	1.5	4	45	4
ESRR71201503006	1.5	0.3	1.5	6	45	4
ESRR71201503008	1.5	0.3	1.5	8	45	4
ESRR71201503010	1.5	0.3	1.5	10	50	4
ESRR71201503012	1.5	0.3	1.5	12	50	4
ESRR71201503014	1.5	0.3	1.5	14	50	4
ESRR71201503016	1.5	0.3	1.5	16	50	4
ESRR71201503020	1.5	0.3	1.5	20	50	4
ESRR71201505004	1.5	0.5	1.5	4	45	4
ESRR71201505006	1.5	0.5	1.5	6	45	4
ESRR71201505008	1.5	0.5	1.5	8	45	4
ESRR71201505010	1.5	0.5	1.5	10	50	4
ESRR71201505012	1.5	0.5	1.5	12	50	4
ESRR71201505014	1.5	0.5	1.5	14	50	4
ESRR71201505016	1.5	0.5	1.5	16	50	4
ESRR71201505020	1.5	0.5	1.5	20	50	4
ESRR71202000206	2.0	0.02	2.0	6	45	4
ESRR71202000208	2.0	0.02	2.0	8	45	4
ESRR71202000210	2.0	0.02	2.0	10	50	4
ESRR71202000212	2.0	0.02	2.0	12	50	4
ESRR71202000214	2.0	0.02	2.0	14	50	4
ESRR71202000216	2.0	0.02	2.0	16	50	4
ESRR71202000220	2.0	0.02	2.0	20	50	4
ESRR71202000225	2.0	0.02	2.0	25	60	4
ESRR71202000506	2.0	0.05	2.0	6	45	4
ESRR71202000508	2.0	0.05	2.0	8	45	4
ESRR71202000510	2.0	0.05	2.0	10	50	4
ESRR71202000512	2.0	0.05	2.0	12	50	4
ESRR71202000514	2.0	0.05	2.0	14	50	4
ESRR71202000516	2.0	0.05	2.0	16	50	4
ESRR71202000520	2.0	0.05	2.0	20	50	4

2 FLUTES RIB RADIUS ENDMILL

EDP No.	D (mm)	R (mm)	L1 (mm)	L3 (mm)	L2 (mm)	D2 (mm)
ESRR71202000525	2.0	0.05	2.0	25	60	4
ESRR71202001006	2.0	0.1	2.0	6	45	4
ESRR71202001008	2.0	0.1	2.0	8	45	4
ESRR71202001010	2.0	0.1	2.0	10	50	4
ESRR71202001012	2.0	0.1	2.0	12	50	4
ESRR71202001014	2.0	0.1	2.0	14	50	4
ESRR71202001016	2.0	0.1	2.0	16	50	4
ESRR71202001020	2.0	0.1	2.0	20	50	4
ESRR71202001025	2.0	0.1	2.0	25	60	4
ESRR71202001030	2.0	0.1	2.0	30	70	4
ESRR71202002006	2.0	0.2	2.0	6	45	4
ESRR71202002008	2.0	0.2	2.0	8	45	4
ESRR71202002010	2.0	0.2	2.0	10	50	4
ESRR71202002012	2.0	0.2	2.0	12	50	4
ESRR71202002014	2.0	0.2	2.0	14	50	4
ESRR71202002016	2.0	0.2	2.0	16	50	4
ESRR71202002020	2.0	0.2	2.0	20	50	4
ESRR71202002025	2.0	0.2	2.0	25	60	4
ESRR71202002030	2.0	0.2	2.0	30	70	4
ESRR71202003006	2.0	0.3	2.0	6	45	4
ESRR71202003008	2.0	0.3	2.0	8	45	4
ESRR71202003010	2.0	0.3	2.0	10	50	4
ESRR71202003012	2.0	0.3	2.0	12	50	4
ESRR71202003014	2.0	0.3	2.0	14	50	4
ESRR71202003016	2.0	0.3	2.0	16	50	4
ESRR71202003020	2.0	0.3	2.0	20	50	4
ESRR71202003025	2.0	0.3	2.0	25	60	4
ESRR71202003030	2.0	0.3	2.0	30	70	4
ESRR71202005006	2.0	0.5	2.0	6	45	4
ESRR71202005008	2.0	0.5	2.0	8	45	4
ESRR71202005010	2.0	0.5	2.0	10	50	4
ESRR71202005012	2.0	0.5	2.0	12	50	4
ESRR71202005014	2.0	0.5	2.0	14	50	4
ESRR71202005016	2.0	0.5	2.0	16	50	4
ESRR71202005020	2.0	0.5	2.0	20	50	4
ESRR71202005025	2.0	0.5	2.0	25	60	4
ESRR71202005030	2.0	0.5	2.0	30	70	4
ESRR71202501010	2.5	0.1	2.5	10	50	4
ESRR71202501016	2.5	0.1	2.5	16	50	4
ESRR71202501020	2.5	0.1	2.5	20	50	4
ESRR71202501025	2.5	0.1	2.5	25	60	4
ESRR71202501030	2.5	0.1	2.5	30	70	4
ESRR71202502010	2.5	0.2	2.5	10	50	4
ESRR71202502016	2.5	0.2	2.5	16	50	4
ESRR71202502020	2.5	0.2	2.5	20	50	4
ESRR71202503010	2.5	0.3	2.5	10	50	4
ESRR71202503016	2.5	0.3	2.5	16	50	4
ESRR71202503020	2.5	0.3	2.5	20	50	4
ESRR71202505010	2.5	0.5	2.5	10	50	4
ESRR71202505016	2.5	0.5	2.5	16	50	4
ESRR71202505020	2.5	0.5	2.5	20	50	4
ESRR71203001010	3.0	0.1	3.0	10	50	6
ESRR71203001012	3.0	0.1	3.0	12	50	6
ESRR71203001016	3.0	0.1	3.0	16	55	6
ESRR71203001020	3.0	0.1	3.0	20	60	6
ESRR71203001025	3.0	0.1	3.0	25	65	6
ESRR71203001030	3.0	0.1	3.0	30	70	6
ESRR71203001035	3.0	0.1	3.0	35	75	6
ESRR71203001040	3.0	0.1	3.0	40	80	6
ESRR71203002010	3.0	0.2	3.0	10	50	6
ESRR71203002012	3.0	0.2	3.0	12	50	6
ESRR71203002016	3.0	0.2	3.0	16	55	6
ESRR71203002020	3.0	0.2	3.0	20	60	6
ESRR71203002025	3.0	0.2	3.0	25	65	6
ESRR71203002030	3.0	0.2	3.0	30	70	6
ESRR71203002035	3.0	0.2	3.0	35	75	6
ESRR71203002040	3.0	0.2	3.0	40	80	6
ESRR71203003010	3.0	0.3	3.0	10	50	6
ESRR71203003012	3.0	0.3	3.0	12	50	6

2 FLUTES RIB RADIUS ENDMILL

EDP No.	D	R	L1	L3	L2	D2
ESRR71204001025	4	0.1	4	25	65	6
ESRR71204001030	4	0.1	4	30	70	6
ESRR71204001035	4	0.1	4	35	75	6
ESRR71204001040	4	0.1	4	40	80	6
ESRR71204002012	4	0.2	4	12	50	6
ESRR71204002016	4	0.2	4	16	55	6
ESRR71204002020	4	0.2	4	20	60	6
ESRR71204002025	4	0.2	4	25	65	6
ESRR71204002030	4	0.2	4	30	70	6
ESRR71204002035	4	0.2	4	35	75	6
ESRR71204002040	4	0.2	4	40	80	6
ESRR71204003012	4	0.3	4	12	50	6
ESRR71204003016	4	0.3	4	16	55	6
ESRR71204003020	4	0.3	4	20	60	6
ESRR71204003025	4	0.3	4	25	65	6
ESRR71204003030	4	0.3	4	30	70	6
ESRR71204003035	4	0.3	4	35	75	6
ESRR71204003040	4	0.3	4	40	80	6
ESRR71204005012	4	0.5	4	12	50	6
ESRR71204005016	4	0.5	4	16	55	6
ESRR71204005020	4	0.5	4	20	60	6
ESRR71204005025	4	0.5	4	25	65	6
ESRR71204005030	4	0.5	4	30	70	6
ESRR71204005035	4	0.5	4	35	75	6
ESRR71204005040	4	0.5	4	40	80	6
ESRR71204010012	4	1	4	12	50	6
ESRR71204010016	4	1	4	16	55	6
ESRR71204010020	4	1	4	20	60	6
ESRR71204010025	4	1	4	25	65	6
ESRR71204010030	4	1	4	30	70	6
ESRR71204010035	4	1	4	35	75	6
ESRR71204010040	4	1	4	40	80	6
ESRR71205002015	5	0.2	6	15	60	6
ESRR71205002025	5	0.2	6	25	70	6
ESRR71205002030	5	0.2	6	30	70	6
ESRR71205002040	5	0.2	6	40	80	6
ESRR71205005015	5	0.5	6	15	60	6
ESRR71205005025	5	0.5	6	25	70	6
ESRR71205005030	5	0.5	6	30	70	6
ESRR71205005040	5	0.5	6	40	80	6
ESRR71205010015	5	1	6	15	60	6
ESRR71205010025	5	1	6	25	70	6
ESRR71205010030	5	1	6	30	70	6
ESRR71205010040	5	1	6	40	80	6
ESRR71206001020	6	0.1	7	20	60	6
ESRR71206001040	6	0.1	7	40	80	6
ESRR71206002020	6	0.2	7	20	60	6
ESRR71206002040	6	0.2	7	40	80	6
ESRR71206003020	6	0.3	7	20	60	6
ESRR71206003040	6	0.3	7	40	80	6
ESRR71206005020	6	0.5	7	20	60	6
ESRR71206005040	6	0.5	7	40	80	6
ESRR71206010020	6	1	7	20	60	6
ESRR71206010040	6	1	7	40	80	6
ESRR71206015020	6	1.5	7	20	60	6
ESRR71206015040	6	1.5	7	40	80	6
ESRR71208002022	8	0.2	9	22	65	8
ESRR71208003022	8	0.3	9	22	65	8
ESRR71208005022	5	0.5	9	22	65	8
ESRR71208010022	8	1	9	22	65	8
ESRR71208015022	8	1.5	9	22	65	8
ESRR71210002024	10	0.2	11	24	70	10
ESRR71210003024	10	0.3	11	24	70	10
ESRR71210005024	10	0.5	11	24	70	10
ESRR71210010024	10	1	11	24	70	10
ESRR71210015024	10	1.5	11	24	70	10
ESRR71210020024	10	2	11	24	70	10
ESRR71212002026	12	0.2	13	26	80	12
ESRR71212003026	12	0.3	13	26	80	12
ESRR71212005026	12	0.5	13	26	80	12
ESRR71212010026	12	1	13	26	80	12
ESRR71212015026	12	1.5	13	26	80	12
ESRR71212020026	12	2	13	26	80	12
ESRR71212030026	12	3	13	26	80	12
ESRR71216005035	16	0.5	20	35	110	16
ESRR71216010035	16	1	20	35	110	16

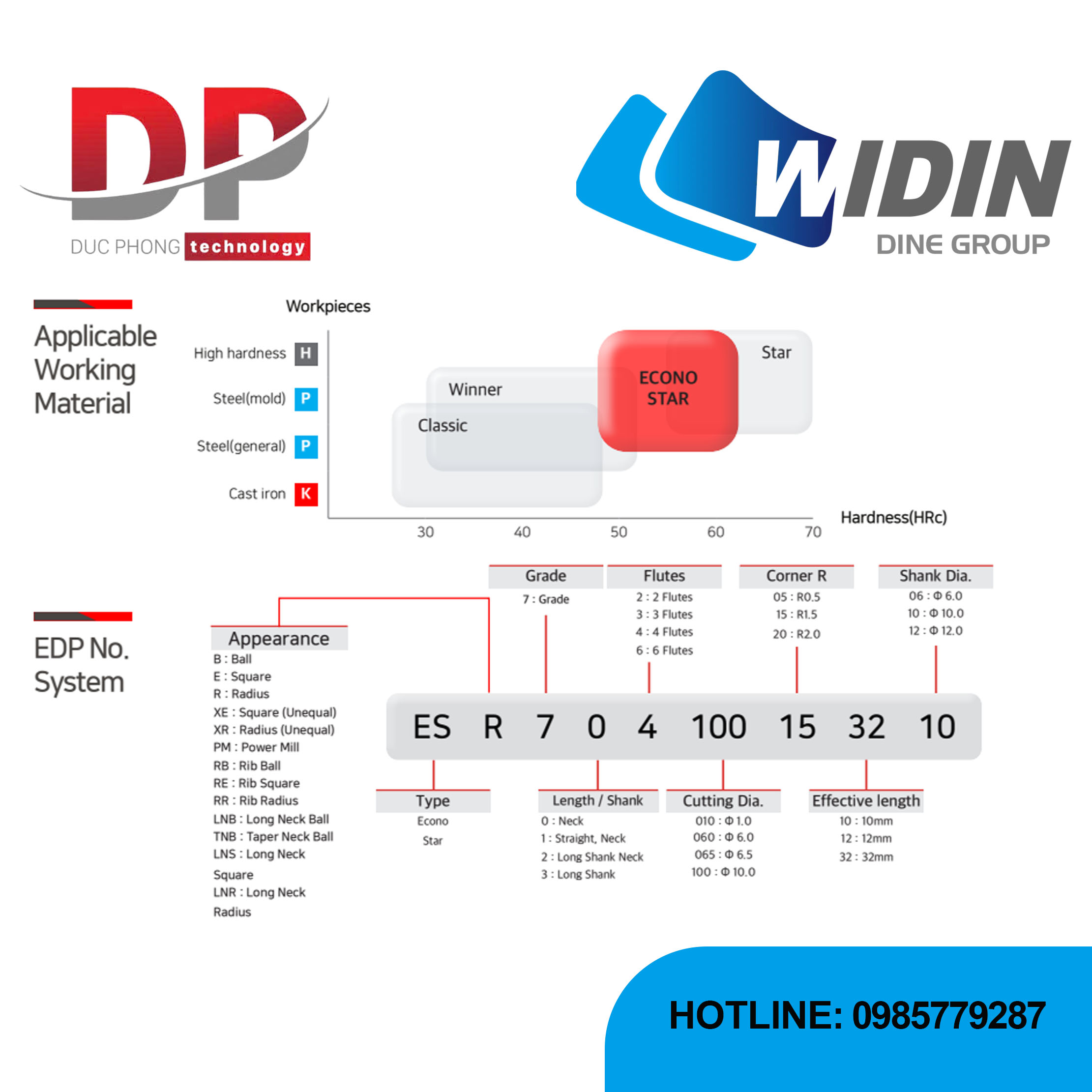

Applicable working materia

Carbon Steel ~HB225	Alloy Steel HB225~325	Pre hardened Steel HB225 ~ 325	Hardened steel SKD61 ~HRc55	Hardened steel SKD11 HRc55~63	Copper	Graphite	Cast iron ~FCD500	Aluminum	Stainless Steel
		○	◎	◎	○

Tolerance

D		Shank Dia.
~ D6	0 ~ -0.012mm	H5
D8 ~ 12	0 ~ -0.015mm

Thông tin liên hệ đặt hàng:

THIẾT BỊ CƠ KHÍ ĐỨC PHONG

Hà Nội: Tầng 7, Căn số 32V5A, KĐT Văn Phú, phường Phú La, quận Hà Đông, TP. Hà Nội

Hotline: 0985779287 (Zalo)

website: https://ducphongstore.vn/

Mail: Info@ducphong.vn

Hỗ trợ 24/7

Chi nhánh Hồ Chí Minh: 228/55, Thống Nhất, P. 10, Q. Gò Vấp, TP. HCM
