Dao phay ngón Radius OT-4HRLN và DR-4HRLN Carbide 4 me - Segawa

Mô tả sản phẩm dao phay ngón Radius OT-4HRLN và DR-4HRLN Carbide 4 me

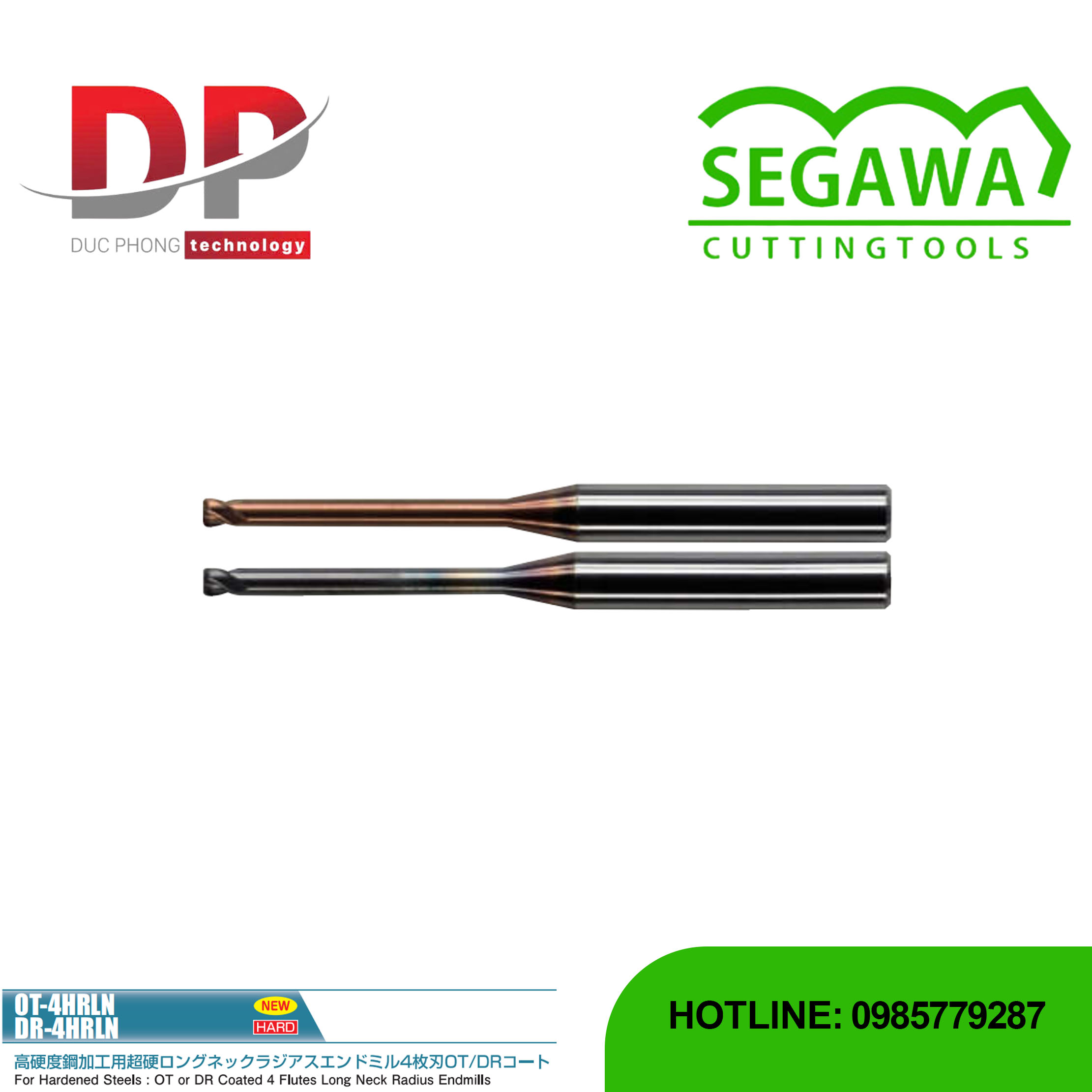

Dao phay ngón Radius OT-4HRLN và DR-4HRLN Carbide 4 me - Segawa là sản phẩm mới, chuyên dùng cho gia công thép có độ cứng cao. Đây là loại dao cổ dài với 4 me cắt và có góc bo Radius ($R$). Thiết kế cổ dài cho phép gia công các hốc sâu hoặc cần tránh va chạm với thành phôi.

Đặc điểm nổi bật

• Số me cắt: Sử dụng 4 me cắt.
• Chuyên dùng cho vật liệu cứng: Được thiết kế để gia công thép đã tôi cứng.

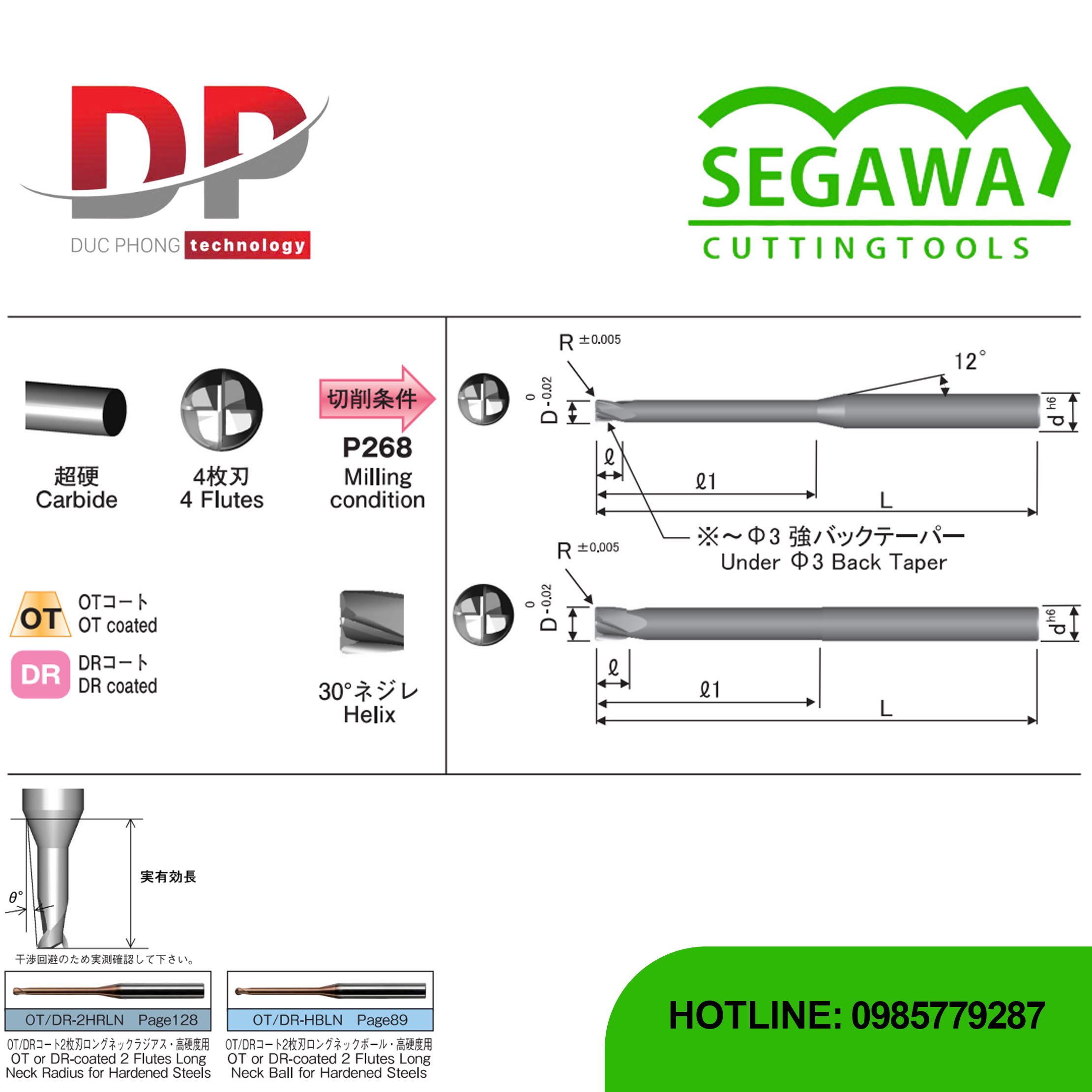

• Thiết kế Cổ Dài: Có phần cổ thon dài (Under $\varphi 3$ Back Taper) với góc côn 12∘. Thiết kế này giúp tránh tiếp xúc với thành phôi khi gia công các chi tiết có độ sâu lớn.
• Lớp phủ OT/DR: Cung cấp hai tùy chọn lớp phủ chuyên biệt: OT (TiAlN) Coated có uy tín tốt cho vật liệu độ cứng cao. DR (Diamond-like Carbon) Coated được phát triển để đạt tốc độ cao hơn và tuổi thọ dài hơn so với lớp phủ OT.
• Phạm vi gia công thép cứng: Có thể gia công thép đã tôi cứng: Với OT: từ $\sim 55HRC$ đến $\sim 65HRC$. Với DR: từ $\sim 65HRC$ đến $\sim 70HRC$.
• Dao có góc xoắn 30∘ (Helix).
• Độ chính xác: Bán kính góc bo ($R$) được chế tạo với độ chính xác rất cao (dung sai $\pm 0.005$).
• Vật liệu gia công khác: Phù hợp cho thép carbon, thép hợp kim, thép tiền tôi cứng (NAK HPM), và thép không gỉ (SUS304/316).

Thông số

Work Material Compatibility

Work Material	Carbon Steels S45C S50C	Alloy Steels SK SCM SUS	Hardened Steels $\sim$55HRC	Hardened Steels $\sim$65HRC	Hardened Steels $\sim$70HRC	Prehardened Steels NAK HPM	Stainless Steels SUS304 316	Aluminium Alloys Copper Alloys	Plastics	Graphite
	$\text{O}$	$\text{O}$	◎	$\text{O}$	$\text{O (DR)}$	◎	$\text{O}$

Product Specifications

Model	Dia (D)	Corner Radius R(R)	Neck Length (ℓ1​)	Flute Length ($\ell$)	Neck Dia (d1)	Overall Length (L)	Shank Dia (d)	Inclined Angle
								0.5°	1°	1.5°	2°	3°
$\text{OO-4HRLN 1xR0.1x4}$	1	R0.1	4	6	0.8	50	4	4.17	4.35	4.55	4.77	5.28
$\text{OO-4HRLN 1xR0.1x6}$	1	R0.1	6	6	0.8	50	4	6.25	6.53	6.83	7.16	7.93
$\text{OO-4HRLN 1xR0.1x8}$	1	R0.1	8	6	0.8	50	4	8.34	8.71	9.11	9.55	10.59
$\text{OO-4HRLN 1xR0.1x10}$	1	R0.1	10	6	0.8	50	4	10.42	10.89	11.39	11.95	13.24
$\text{OO-4HRLN 1xR0.1x12}$	1	R0.1	12	6	0.8	60	4	12.51	13.06	13.67	14.34	15.89
$\text{OO-4HRLN 1xR0.1x16}$	1	R0.1	16	6	0.8	60	4	16.68	17.42	18.23	19.13	21.2
$\text{OO-4HRLN 1xR0.1x20}$	1	R0.1	20	6	0.8	60	4	20.85	21.78	22.8	23.91	26.51
$\text{OO-4HRLN 1xR0.2x4}$	1	R0.2	4	6	0.95	50	4	4.16	4.34	4.53	4.75	5.24
$\text{OO-4HRLN 1xR0.2x6}$	1	R0.2	6	6	0.95	50	4	6.25	6.52	6.81	7.14	7.9
$\text{OO-4HRLN 1xR0.2x8}$	1	R0.2	8	6	0.95	50	4	8.33	8.7	9.1	9.53	10.55
$\text{OO-4HRLN 1xR0.2x10}$	1	R0.2	10	6	0.95	50	4	10.42	10.88	11.38	11.93	13.21
$\text{OO-4HRLN 1xR0.2x12}$	1	R0.2	12	6	0.95	60	4	12.51	13.06	13.66	14.32	15.86
$\text{OO-4HRLN 1xR0.2x16}$	1	R0.2	16	6	0.95	60	4	16.68	17.41	18.22	19.11	21.17
$\text{OO-4HRLN 1xR0.2x20}$	1	R0.2	20	6	0.95	60	4	20.85	21.77	22.78	23.89	26.48
$\text{OO-4HRLN 1.5xR0.1x4}$	1.5	R0.1	4	8	1.35	50	4	4.17	4.35	4.55	4.77	5.28
$\text{OO-4HRLN 1.5xR0.1x8}$	1.5	R0.1	8	8	1.35	50	4	8.34	8.71	9.11	9.55	10.59
$\text{OO-4HRLN 1.5xR0.1x12}$	1.5	R0.1	12	8	1.45	60	4	12.51	13.06	13.67	14.34	15.89
$\text{OO-4HRLN 1.5xR0.1x15}$	1.5	R0.1	15	8	1.45	60	4	15.64	16.33	17.09	17.93	19.88
$\text{OO-4HRLN 1.5xR0.1x20}$	1.5	R0.1	20	8	1.45	60	4	20.85	21.78	22.8	23.91	-
$\text{OO-4HRLN 1.5xR0.2x4}$	1.5	R0.2	4	8	1.45	50	4	4.16	4.34	4.53	4.75	5.24
$\text{OO-4HRLN 1.5xR0.2x8}$	1.5	R0.2	8	8	1.45	50	4	8.33	8.7	9.1	9.53	10.55

Model	Dia (D)	Corner Radius R(R)	Neck Length (ℓ1​)	Flute Length ($\ell$)	Neck Dia (d1)	Overall Length (L)	Shank Dia (d)	Inclined Angle
								0.5°	1°	1.5°	2°	3°
$\text{OO-4HRLN 1.5xR0.2x12}$	1.5	R0.2	12	8	1.45	60	4	12.51	13.06	13.66	14.32	15.86
$\text{OO-4HRLN 1.5xR0.2x15}$	1.5	R0.2	15	8	1.45	60	4	15.63	16.32	17.08	17.91	19.84
$\text{OO-4HRLN 1.5xR0.2x20}$	1.5	R0.2	20	8	1.45	60	4	20.85	21.77	22.78	23.89	-
$\text{OO-4HRLN 2xR0.1x4}$	2	R0.1	4	12	1.7	50	4	4.17	4.35	4.55	4.77	5.28
$\text{OO-4HRLN 2xR0.1x6}$	2	R0.1	6	12	1.7	50	4	6.25	6.53	6.83	7.16	7.93
$\text{OO-4HRLN 2xR0.1x8}$	2	R0.1	8	12	1.7	50	4	8.34	8.71	9.11	9.55	10.59
$\text{OO-4HRLN 2xR0.1x12}$	2	R0.1	12	12	1.7	60	4	12.51	13.06	13.67	14.34	15.89
$\text{OO-4HRLN 2xR0.1x16}$	2	R0.1	16	12	1.7	60	4	16.68	17.42	18.23	19.13	-
$\text{OO-4HRLN 2xR0.1x20}$	2	R0.1	20	12	1.7	60	4	20.85	21.78	22.8	23.91	-
$\text{OO-4HRLN 2xR0.2x4}$	2	R0.2	4	12	1.95	50	4	4.16	4.34	4.53	4.75	5.24
$\text{OO-4HRLN 2xR0.2x6}$	2	R0.2	6	12	1.95	50	4	6.25	6.52	6.81	7.14	7.9
$\text{OO-4HRLN 2xR0.2x8}$	2	R0.2	8	12	1.95	50	4	8.33	8.7	9.1	9.53	10.55
$\text{OO-4HRLN 2xR0.2x12}$	2	R0.2	12	12	1.95	60	4	12.51	13.06	13.66	14.32	15.86
$\text{OO-4HRLN 2xR0.2x16}$	2	R0.2	16	12	1.95	60	4	16.68	17.41	18.22	19.11	-
$\text{OO-4HRLN 2xR0.2x20}$	2	R0.2	20	12	1.95	60	4	20.85	21.77	22.78	23.89	-
$\text{OO-4HRLN 2xR0.2x25}$	2	R0.2	25	12	1.95	70	4	26.06	27.22	28.48	-	-
$\text{OO-4HRLN 2xR0.2x30}$	2	R0.2	30	12	1.95	70	4	31.28	32.67	34.19	-	-
$\text{OO-4HRLN 2xR0.3x4}$	2	R0.3	4	12	1.95	50	4	4.16	4.33	4.52	4.73	5.21
$\text{OO-4HRLN 2xR0.3x8}$	2	R0.3	8	12	1.95	50	4	8.33	8.69	9.08	9.51	10.52
$\text{OO-4HRLN 2xR0.3x12}$	2	R0.3	12	12	1.95	60	4	12.5	13.05	13.64	14.3	15.83
$\text{OO-4HRLN 2xR0.3x16}$	2	R0.3	16	12	1.95	60	4	16.67	17.4	18.21	19.09	-
$\text{OO-4HRLN 2xR0.3x20}$	2	R0.3	20	12	1.95	60	4	20.84	21.76	22.77	23.87	-
$\text{OO-4HRLN 2xR0.5x4}$	2	R0.5	4	12	1.95	50	4	4.15	4.31	4.49	4.69	5.15
$\text{OO-4HRLN 2xR0.5x6}$	2	R0.5	6	12	1.95	50	4	6.24	6.49	6.77	7.08	7.8
$\text{OO-4HRLN 2xR0.5x8}$	2	R0.5	8	12	1.95	50	4	8.32	8.67	9.05	9.47	10.45
$\text{OO-4HRLN 2xR0.5x12}$	2	R0.5	12	12	1.95	60	4	12.49	13.03	13.52	14.26	15.76
$\text{OO-4HRLN 2xR0.5x16}$	2	R0.5	16	12	1.95	60	4	16.66	17.39	18.18	19.05	-
$\text{OO-4HRLN 2xR0.5x20}$	2	R0.5	20	12	1.95	60	4	20.83	21.74	22.74	23.83	-
$\text{OO-4HRLN 2xR0.5x25}$	2	R0.5	25	12	1.95	70	4	26.05	27.19	28.44	-	-
$\text{OO-4HRLN 2xR0.5x30}$	2	R0.5	30	12	1.95	70	4	31.26	32.64	34.14	-	-
$\text{OO-4HRLN 2.5xR0.1x8}$	2.5	R0.1	8	16	2	50	4	8.34	8.71	9.11	9.55	10.59
$\text{OO-4HRLN 2.5xR0.1x16}$	2.5	R0.1	16	16	2	60	4	16.68	17.42	18.23	19.13	-
$\text{OO-4HRLN 2.5xR0.1x20}$	2.5	R0.1	20	16	2	60	4	20.85	21.78	22.8	23.91	-
$\text{OO-4HRLN 2.5xR0.2x8}$	2.5	R0.2	8	16	2	50	4	8.33	8.7	9.1	9.53	10.55
$\text{OO-4HRLN 2.5xR0.2x16}$	2.5	R0.2	16	16	2	60	4	16.68	17.41	18.22	19.11	-
$\text{OO-4HRLN 2.5xR0.2x20}$	2.5	R0.2	20	16	2	60	4	20.85	21.77	22.78	23.89	-
$\text{OO-4HRLN 2.5xR0.3x12}$	2.5	R0.3	12	16	2	60	4	12.5	13.05	13.64	14.3	-
$\text{OO-4HRLN 2.5xR0.3x20}$	2.5	R0.3	20	16	2	60	4	20.84	21.76	22.77	-	-
$\text{OO-4HRLN 2.5xR0.5x12}$	2.5	R0.5	12	16	2	60	4	12.49	13.03	13.62	14.26	-
$\text{OO-4HRLN 2.5xR0.5x20}$	2.5	R0.5	20	16	2	60	4	20.83	21.74	22.74	-	-
$\text{OO-4HRLN 2.5xR0.5x30}$	2.5	R0.5	30	16	2	70	4	31.26	32.64	34.14	-	-
$\text{OO-4HRLN 3xR0.1x8}$	3	R0.1	8	16	2.5	60	6	8.34	8.71	9.11	9.55	10.59
$\text{OO-4HRLN 3xR0.1x16}$	3	R0.1	16	16	2.5	60	6	16.68	17.42	18.23	19.13	21.2
$\text{OO-4HRLN 3xR0.1x25}$	3	R0.1	25	16	2.5	70	6	26.07	27.23	28.48	29.88	-
$\text{OO-4HRLN 3xR0.1x30}$	3	R0.1	30	16	2.5	80	6	31.28	32.67	34.19	35.88	-
$\text{OO-4HRLN 3xR0.2x8}$	3	R0.2	8	16	2.9	60	6	8.33	8.7	9.1	9.53	10.55
$\text{OO-4HRLN 3xR0.2x12}$	3	R0.2	12	16	2.9	60	6	12.51	13.06	13.66	14.32	15.86
$\text{OO-4HRLN 3xR0.2x16}$	3	R0.2	16	16	2.9	60	6	16.68	17.41	18.22	19.11	21.17
$\text{OO-4HRLN 3xR0.2x20}$	3	R0.2	20	16	2.9	70	6	20.85	21.77	22.78	23.89	26.48
$\text{OO-4HRLN 3xR0.2x25}$	3	R0.2	25	16	2.9	70	6	26.06	27.22	28.47	29.88	-
$\text{OO-4HRLN 3xR0.2x30}$	3	R0.2	30	16	2.9	80	6	31.28	32.67	34.19	35.86	-
$\text{OO-4HRLN 3xR0.3x8}$	3	R0.3	8	16	2.9	60	6	8.33	8.69	9.08	9.51	10.52
$\text{OO-4HRLN 3xR0.3x16}$	3	R0.3	16	16	2.9	60	6	16.67	17.4	18.21	19.09	21.14
$\text{OO-4HRLN 3xR0.3x20}$	3	R0.3	20	16	2.9	70	6	20.84	21.76	22.77	23.87	26.45
$\text{OO-4HRLN 3xR0.3x25}$	3	R0.3	25	16	2.9	70	6	26.06	27.21	28.47	29.86	-
$\text{OO-4HRLN 3xR0.3x30}$	3	R0.3	30	16	2.9	80	6	31.27	32.66	34.17	35.84	-
$\text{OO-4HRLN 3xR0.5x8}$	3	R0.5	8	16	2.9	60	6	8.32	8.67	9.05	9.47	10.45
$\text{OO-4HRLN 3xR0.5x12}$	3	R0.5	12	16	2.9	60	6	12.49	13.03	13.62	14.26	15.76
$\text{OO-4HRLN 3xR0.5x16}$	3	R0.5	16	16	2.9	60	6	16.66	17.39	18.18	19.05	-
$\text{OO-4HRLN 3xR0.5x20}$	3	R0.5	20	16	2.9	70	6	20.83	21.74	22.74	23.83	26.38
$\text{OO-4HRLN 3xR0.5x25}$	3	R0.5	25	16	2.9	70	6	26.05	27.19	28.44	29.82	-
$\text{OO-4HRLN 3xR0.5x30}$	3	R0.5	30	16	2.9	80	6	31.26	32.64	34.14	35.8	-
$\text{OO-4HRLN 3xR0.5x35}$	3	R0.5	35	16	2.9	80	6	36.48	38.09	39.85	41.78	-
$\text{OO-4HRLN 4xR0.1x12}$	4	R0.1	12	20	3.8	60	6	12.51	13.06	13.57	14.34	15.89
$\text{OO-4HRLN 4xR0.1x20}$	4	R0.1	20	20	3.8	60	6	20.85	21.78	22.8	23.91	-
$\text{OO-4HRLN 4xR0.1x30}$	4	R0.1	30	20	3.8	70	6	31.28	32.68	34.2	-	-
$\text{OO-4HRLN 4xR0.1x40}$	4	R0.1	40	20	3.8	80	6	41.71	43.57	-	-	-

Model	Dia (D)	Corner Radius R(R)	Neck Length (ℓ1​)	Flute Length ($\ell$)	Neck Dia (d1)	Overall Length (L)	Shank Dia (d)	Inclined Angles
								0.5°	1°	1.5°	2°	3°
$\text{OO-4HRLN 4xR0.2x12}$	4	R0.2	12	20	3.8	60	6	12.51	13.06	13.66	14.32	15.86
$\text{OO-4HRLN 4xR0.2x20}$	4	R0.2	20	20	3.8	60	6	20.85	21.77	22.78	23.89	-
$\text{OO-4HRLN 4xR0.2x30}$	4	R0.2	30	20	3.8	80	6	31.28	32.67	34.19	-	-
$\text{OO-4HRLN 4xR0.2x40}$	4	R0.2	40	20	3.8	80	6	41.7	43.56	-	-	-
$\text{OO-4HRLN 4xR0.3x12}$	4	R0.3	12	20	3.8	60	6	12.5	13.05	13.64	14.3	-
$\text{OO-4HRLN 4xR0.3x20}$	4	R0.3	20	20	3.8	60	6	20.84	21.76	22.77	23.87	-
$\text{OO-4HRLN 4xR0.3x30}$	4	R0.3	30	20	3.8	80	6	31.27	32.66	34.17	-	-
$\text{OO-4HRLN 4xR0.3x40}$	4	R0.3	40	20	3.8	80	6	41.7	43.55	-	-	-
$\text{OO-4HRLN 4xR0.5x12}$	4	R0.5	12	20	3.8	60	6	12.49	13.03	13.62	14.26	15.76
$\text{OO-4HRLN 4xR0.5x20}$	4	R0.5	20	20	3.8	60	6	20.83	21.74	22.74	23.83	-
$\text{OO-4HRLN 4xR0.5x30}$	4	R0.5	30	20	3.8	80	6	31.26	32.64	34.14	-	-
$\text{OO-4HRLN 4xR0.5x40}$	4	R0.5	40	20	3.8	80	6	41.69	43.53	-	-	-
$\text{OO-4HRLN 5xR0.1x20}$	5	R0.1	20	25	4.8	70	6	20.85	21.78	-	-	-
$\text{OO-4HRLN 5xR0.1x40}$	5	R0.1	40	25	4.8	90	6	41.71	-	-	-	-
$\text{OO-4HRLN 5xR0.2x20}$	5	R0.2	20	25	4.8	70	6	20.85	21.77	-	-	-
$\text{OO-4HRLN 5xR0.2x40}$	5	R0.2	40	25	4.8	90	6	41.7	-	-	-	-
$\text{OO-4HRLN 5xR0.3x20}$	5	R0.3	20	25	4.8	70	6	20.84	21.76	-	-	-
$\text{OO-4HRLN 5xR0.3x40}$	5	R0.3	40	25	4.8	90	6	41.7	-	-	-	-
$\text{OO-4HRLN 5xR0.5x20}$	5	R0.5	20	25	4.8	70	6	20.83	21.74	-	-	-
$\text{OO-4HRLN 5xR0.5x40}$	5	R0.5	40	25	4.8	90	6	41.69	-	-	-	-
$\text{OO-4HRLN 5xR1x20}$	5	R1	20	25	4.8	70	6	20.81	21.7	-	-	-
$\text{OO-4HRLN 5xR1x40}$	5	R1	40	25	4.8	90	6	41.67	-	-	-	-
$\text{OO-4HRLN 6xR0.2x30}$	6	R0.2	30	30	5.8	80	6	-	-	-	-	-
$\text{OO-4HRLN 6xR0.2x50}$	6	R0.2	50	30	5.8	100	6	-	-	-	-	-
$\text{OO-4HRLN 6xR0.2x70}$	6	R0.2	70	30	5.8	120	6	-	-	-	-	-
$\text{OO-4HRLN 6xR0.3x30}$	6	R0.3	30	30	5.8	80	6	-	-	-	-	-
$\text{OO-4HRLN 6xR0.3x50}$	6	R0.3	50	30	5.8	100	6	-	-	-	-	-
$\text{OO-4HRLN 6xR0.3x70}$	6	R0.3	70	30	5.8	120	6	-	-	-	-	-
$\text{OO-4HRLN 6xR0.5x30}$	6	R0.5	30	30	5.8	80	6	-	-	-	-	-
$\text{OO-4HRLN 6xR0.5x50}$	6	R0.5	50	30	5.8	100	6	-	-	-	-	-
$\text{OO-4HRLN 6xR0.5x70}$	6	R0.5	70	30	5.8	120	6	-	-	-	-	-
$\text{OO-4HRLN 6xR1x30}$	6	R1	30	30	5.8	80	6	-	-	-	-	-
$\text{OO-4HRLN 6xR1x50}$	6	R1	50	30	5.8	100	6	-	-	-	-	-
$\text{OO-4HRLN 6xR1x70}$	6	R1	70	30	5.8	120	6	-	-	-	-	-
