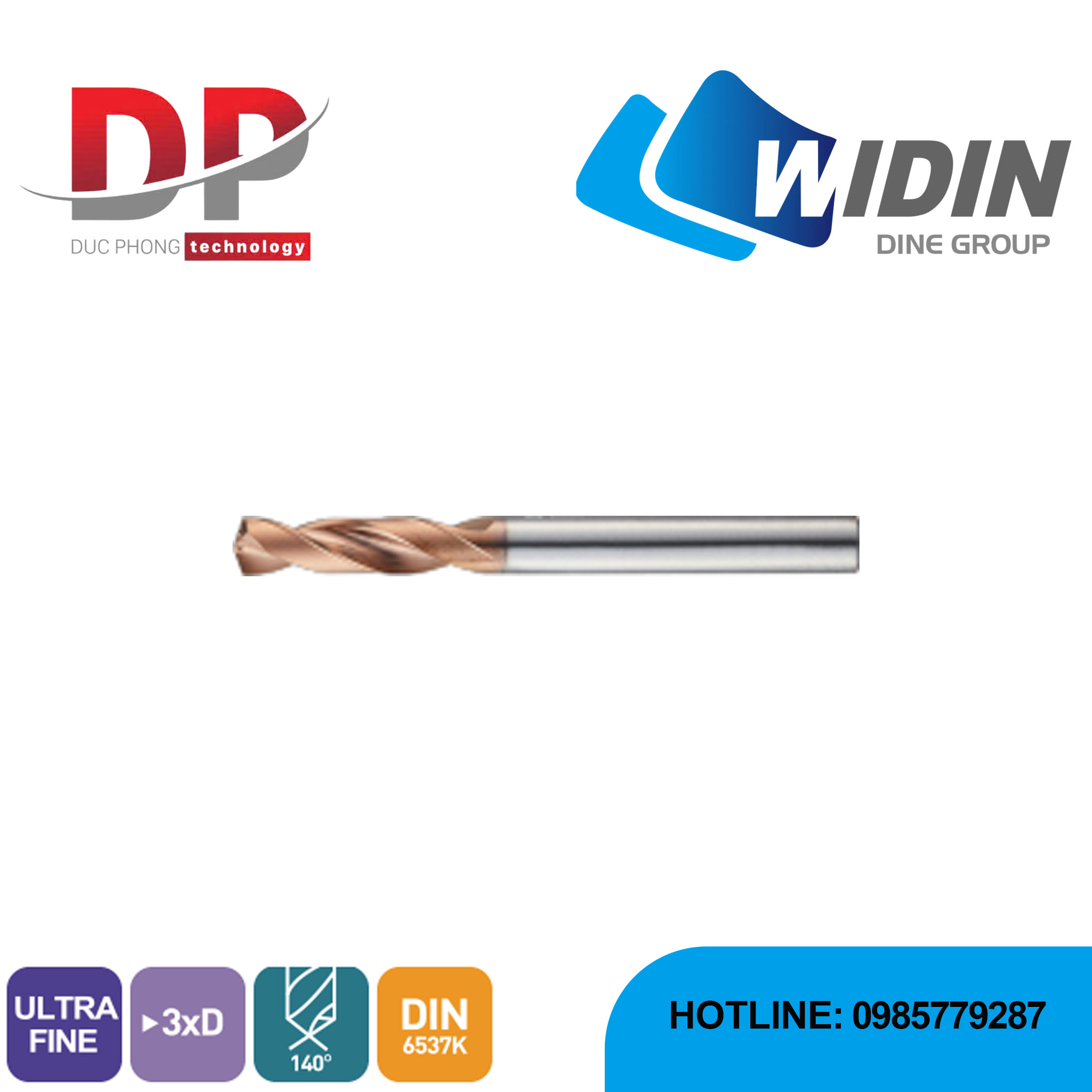

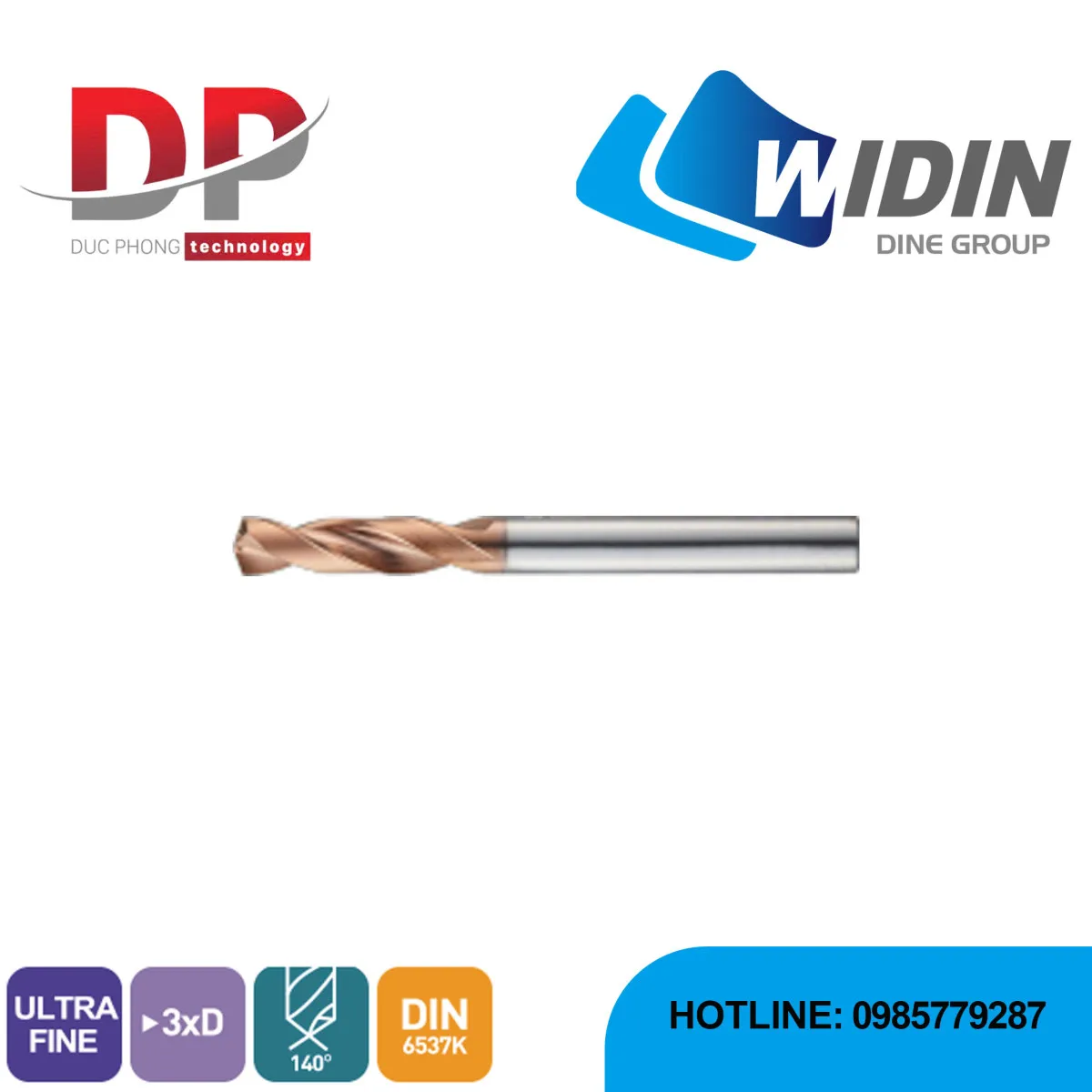

Mũi khoan carbide series PI503A / PI503F - WIDIN (Dùng để khoan tốc độ cao)

Mô tả sản phẩm mũi khoan carbide series PI503A / PI503F

Mũi khoan carbide series PI503A / PI503F - WIDIN là lựa chọn tối ưu cho việc gia công tốc độ cao các loại vật liệu như thép hợp kim, gang, thép không gỉ và thép đã tôi sơ bộ, độ cứng lên đến ~HRc50.

Phân loại

• PI503A: DIN 6535 HA straight A type

• PI503F: DIN 6535 HE 2°Whistle Flat F type

Đặc điểm nổi bật

• Mũi khoan carbide series PI503A / PI503F có chiều sâu cắt 8D và sử dụng thiết kế Single Margin.

• Hệ thống làm mát trong Internal Coolant type giúp giảm nhiệt ma sát, từ đó cải thiện đáng kể khả năng gia công.

• Vật liệu có độ dẻo dai cao giúp tăng khả năng chống sứt mẻ.

• Lớp phủ TiAlN được áp dụng để tăng cường độ cứng bề mặt và khả năng chịu nhiệt.

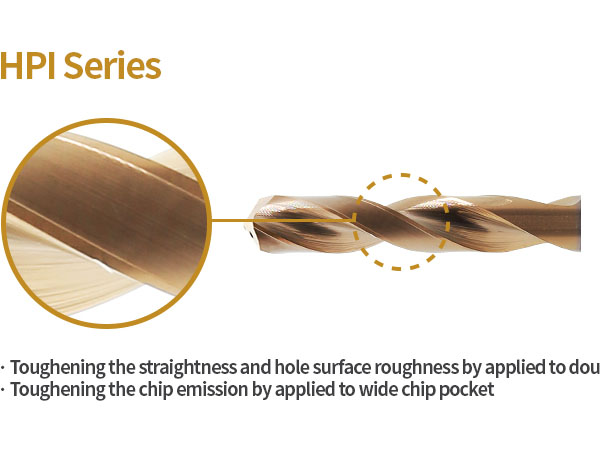

Tính năng vượt trội

Thông số

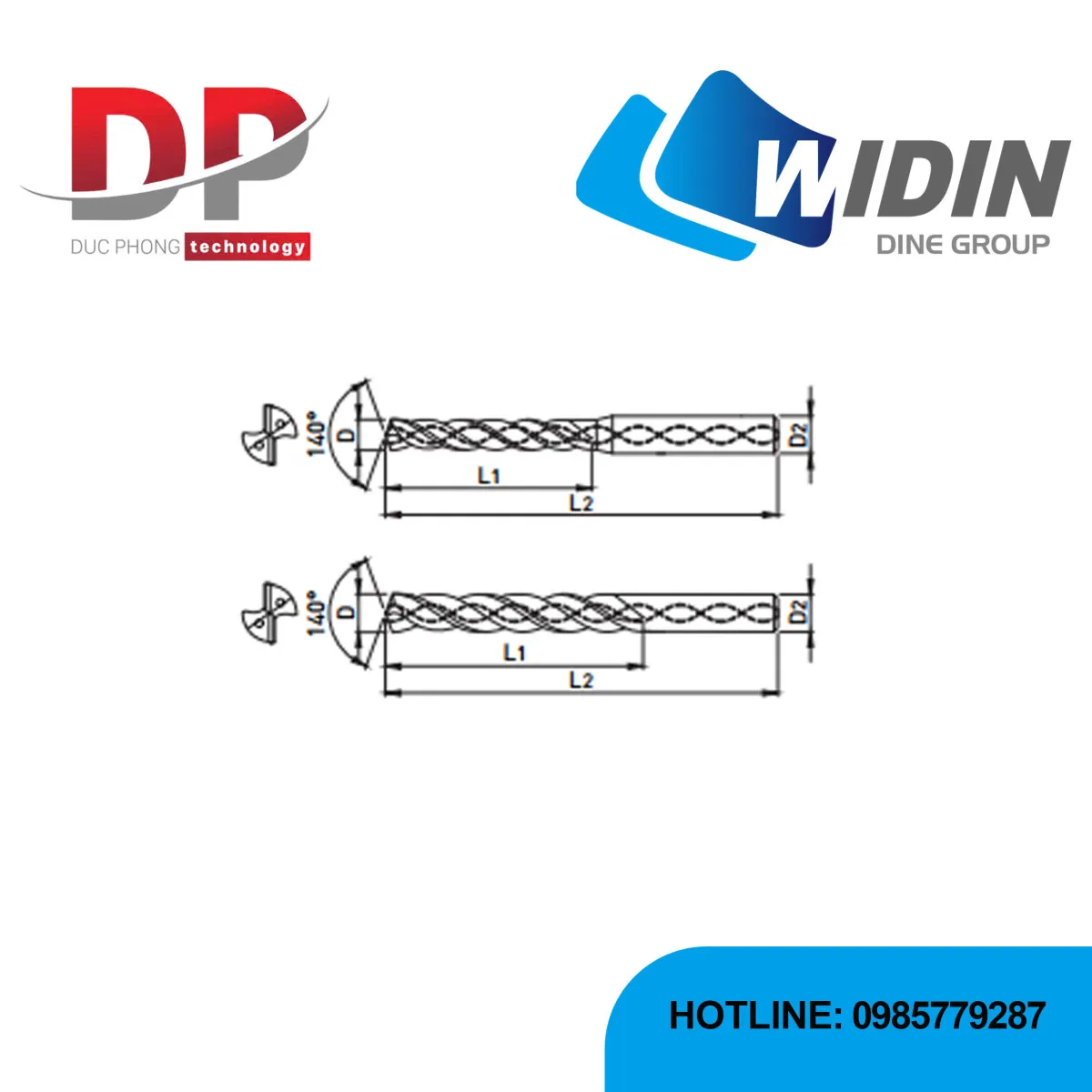

EDP. No.	D	D2	L1	L2	L3
PI503A030	3.0	6	14	20	62
PI503F030	3.0	6	14	20	62
PI503A032	3.2	6	14	20	62
PI503F032	3.2	6	14	20	62
PI503A033	3.3	6	14	20	62
PI503F033	3.3	6	14	20	62
PI503A034	3.4	6	14	20	62
PI503F034	3.4	6	14	20	62
PI503A035	3.5	6	14	20	62
PI503F035	3.5	6	14	20	62
PI503A036	3.6	6	17	24	66
PI503F036	3.6	6	17	24	66
PI503A037	3.7	6	17	24	66
PI503F037	3.7	6	17	24	66
PI503A038	3.8	6	17	24	66
PI503F038	3.8	6	17	24	66
PI503A039	3.9	6	17	24	66
PI503F039	3.9	6	17	24	66
PI503A040	4.0	6	17	24	66
PI503F040	4.0	6	17	24	66
PI503A041	4.1	6	17	24	66
PI503F041	4.1	6	17	24	66
PI503A042	4.2	6	17	24	66
PI503F042	4.2	6	17	24	66
PI503A043	4.3	6	17	24	66
PI503F043	4.3	6	17	24	66
PI503A044	4.4	6	17	24	66
PI503F044	4.4	6	17	24	66
PI503A045	4.5	6	17	24	66
PI503F045	4.5	6	17	24	66
PI503A046	4.6	6	17	24	66
PI503F046	4.6	6	17	24	66
PI503A047	4.7	6	17	24	66
PI503F047	4.7	6	17	24	66
PI503A048	4.8	6	20	28	66
PI503F048	4.8	6	20	28	66
PI503A049	4.9	6	20	28	66
PI503F049	4.9	6	20	28	66
PI503A050	5.0	6	20	28	66
PI503F050	5.0	6	20	28	66
PI503A051	5.1	6	20	28	66
PI503F051	5.1	6	20	28	66
PI503A052	5.2	6	20	28	66
PI503F052	5.2	6	20	28	66
PI503A053	5.3	6	20	28	66
PI503F053	5.3	6	20	28	66
PI503A054	5.4	6	20	28	66
PI503F054	5.4	6	20	28	66
PI503A055	5.5	6	20	28	66
PI503F055	5.5	6	20	28	66
PI503A056	5.6	6	20	28	66
PI503F056	5.6	6	20	28	66
PI503A057	5.7	6	20	28	66
PI503F057	5.7	6	20	28	66
PI503A058	5.8	6	20	28	66
PI503F058	5.8	6	20	28	66
PI503A059	5.9	6	20	28	66
PI503F059	5.9	6	20	28	66
PI503A060	6.0	6	20	28	66
PI503F060	6.0	6	20	28	66
PI503A061	6.1	8	24	34	79
PI503F061	6.1	8	24	34	79
PI503A062	6.2	8	24	34	79
PI503F062	6.2	8	24	34	79
PI503A063	6.3	8	24	34	79
PI503F063	6.3	8	24	34	79
PI503A064	6.4	8	24	34	79
PI503F064	6.4	8	24	34	79
PI503A065	6.5	8	24	34	79
PI503F065	6.5	8	24	34	79
PI503A066	6.5	8	24	34	79
PI503F066	6.5	8	24	34	79
PI503A067	6.7	8	24	34	79
PI503F067	6.7	8	24	34	79
PI503A068	6.8	8	24	34	79
PI503F068	6.8	8	24	34	79
PI503A069	6.9	8	24	34	79
PI503F069	6.9	8	24	34	79
PI503A070	7.0	8	24	34	79
PI503F070	7.0	8	24	34	79
PI503A071	7.1	8	29	41	79
PI503F071	7.1	8	29	41	79
PI503A072	7.2	8	29	41	79
PI503F072	7.2	8	29	41	79
PI503A073	7.3	8	29	41	79
PI503F073	7.3	8	29	41	79
PI503A074	7.4	8	29	41	79
PI503F074	7.4	8	29	41	79
PI503A075	7.5	8	29	41	79
PI503F075	7.5	8	29	41	79
PI503A076	7.6	8	29	41	79
PI503F076	7.6	8	29	41	79
PI503A077	7.7	8	29	41	79
PI503F077	7.7	8	29	41	79
PI503A078	7.8	8	29	41	79
PI503F078	7.8	8	29	41	79
PI503A079	7.9	8	29	41	79
PI503F079	7.9	8	29	41	79
PI503A080	8.0	8	29	41	79
PI503F080	8.0	8	29	41	79
PI503A081	8.1	10	35	47	89
PI503F081	8.1	10	35	47	89
PI503A082	8.2	10	35	47	89
PI503F082	8.2	10	35	47	89
PI503A083	8.3	10	35	47	89
PI503F083	8.3	10	35	47	89
PI503A084	8.4	10	35	47	89
PI503F084	8.4	10	35	47	89
PI503A085	8.5	10	35	47	89
PI503F085	8.5	10	35	47	89
PI503A086	8.6	10	35	47	89
PI503F086	8.6	10	35	47	89
PI503A087	8.7	10	35	47	89
PI503F087	8.7	10	35	47	89
PI503A088	8.8	10	35	47	89
PI503F088	8.8	10	35	47	89
PI503A089	8.9	10	35	47	89
PI503F089	8.9	10	35	47	89
PI503A090	9.0	10	35	47	89
PI503F090	9.0	10	35	47	89
PI503A091	9.1	10	35	47	89
PI503F091	9.1	10	35	47	89
PI503A092	9.2	10	35	47	89
PI503F092	9.2	10	35	47	89
PI503A093	9.3	10	35	47	89
PI503F093	9.3	10	35	47	89
PI503A094	9.4	10	35	47	89
PI503F094	9.4	10	35	47	89
PI503A095	9.5	10	35	47	89
PI503F095	9.5	10	35	47	89
PI503A096	9.6	10	35	47	89
PI503F096	9.6	10	35	47	89
PI503A097	9.7	10	35	47	89
PI503F097	9.7	10	35	47	89
PI503A098	9.8	10	35	47	89
PI503F098	9.8	10	35	47	89
PI503A099	9.9	10	35	47	89
PI503F099	9.9	10	35	47	89
PI503A100	10.0	10	35	47	89
PI503F100	10.0	10	35	47	89
PI503A101	10.1	12	40	55	102
PI503F101	10.1	12	40	55	102
PI503A102	10.2	12	40	55	102
PI503F102	10.2	12	40	55	102
PI503A103	10.3	12	40	55	102
PI503F103	10.3	12	40	55	102
PI503A104	10.4	12	40	55	102
PI503F104	10.4	12	40	55	102
PI503A105	10.5	12	40	55	102
PI503F105	10.5	12	40	55	102
PI503A106	10.6	12	40	55	102
PI503F106	10.6	12	40	55	102
PI503A107	10.7	12	40	55	102
PI503F107	10.7	12	40	55	102
PI503A108	10.8	12	40	55	102
PI503F108	10.8	12	40	55	102
PI503A109	10.9	12	40	55	102
PI503F109	10.9	12	40	55	102
PI503A110	11.0	12	40	55	102
PI503F110	11.0	12	40	55	102
PI503A111	11.1	12	40	55	102
PI503F111	11.1	12	40	55	102
PI503A112	11.2	12	40	55	102
PI503F112	11.2	12	40	55	102
PI503A113	11.3	12	40	55	102
PI503F113	11.3	12	40	55	102
PI503A114	11.4	12	40	55	102
PI503F114	11.4	12	40	55	102
PI503A115	11.5	12	40	55	102
PI503F115	11.5	12	40	55	102
PI503A116	11.6	12	40	55	102
PI503F116	11.6	12	40	55	102
PI503A117	11.7	12	40	55	102
PI503F117	11.7	12	40	55	102
PI503A118	11.8	12	40	55	102
PI503F118	11.8	12	40	55	102
PI503A119	11.9	12	40	55	102
PI503F119	11.9	12	40	55	102
PI503A120	12.0	12	40	55	102
PI503F120	12.0	12	40	55	102
PI503A121	12.1	14	43	60	107
PI503F121	12.1	14	43	60	107
PI503A122	12.2	14	43	60	107
PI503F122	12.2	14	43	60	107
PI503A123	12.3	14	43	60	107
PI503F123	12.3	14	43	60	107
PI503A124	12.4	14	43	60	107
PI503F124	12.4	14	43	60	107
PI503A125	12.5	14	43	60	107
PI503F125	12.5	14	43	60	107
PI503A126	12.6	14	43	60	107
PI503F126	12.6	14	43	60	107
PI503A127	12.7	14	43	60	107
PI503F127	12.7	14	43	60	107
PI503A128	12.8	14	43	60	107
PI503F128	12.8	14	43	60	107
PI503A129	12.9	14	43	60	107
PI503F129	12.9	14	43	60	107
PI503A130	13.0	14	43	60	107
PI503F130	13.0	14	43	60	107
PI503A131	13.1	14	43	60	107
PI503F131	13.1	14	43	60	107
PI503A132	13.2	14	43	60	107
PI503F132	13.2	14	43	60	107
PI503A133	13.3	14	43	60	107
PI503F133	13.3	14	43	60	107
PI503A134	13.4	14	43	60	107
PI503F134	13.4	14	43	60	107
PI503A135	13.5	14	43	60	107
PI503F135	13.5	14	43	60	107
PI503A136	13.6	14	43	60	107
PI503F136	13.6	14	43	60	107
PI503A137	13.7	14	43	60	107
PI503F137	13.7	14	43	60	107
PI503A138	13.8	14	43	60	107
PI503F138	13.8	14	43	60	107
PI503A139	13.9	14	43	60	107
PI503F139	13.9	14	43	60	107
PI503A140	14.0	14	43	60	107
PI503F140	14.0	14	43	60	107
PI503A141	14.1	16	45	65	115
PI503F141	14.1	16	45	65	115
PI503A142	14.2	16	45	65	115
PI503F142	14.2	16	45	65	115
PI503A143	14.3	16	45	65	115
PI503F143	14.3	16	45	65	115
PI503A144	14.4	16	45	65	115
PI503F144	14.4	16	45	65	115
PI503A145	14.5	16	45	65	115
PI503F145	14.5	16	45	65	115
PI503A146	14.6	16	45	65	115
PI503F146	14.6	16	45	65	115
PI503A147	14.7	16	45	65	115
PI503F147	14.7	16	45	65	115
PI503A148	14.8	16	45	65	115
PI503F148	14.8	16	45	65	115
PI503A149	14.9	16	45	65	115
PI503F149	14.9	16	45	65	115
PI503A150	15.0	16	45	65	115
PI503F150	15.0	16	45	65	115
PI503A151	15.1	16	45	65	115
PI503F151	15.1	16	45	65	115
PI503A152	15.2	16	45	65	115
PI503F152	15.2	16	45	65	115
PI503A153	15.3	16	45	65	115
PI503F153	15.3	16	45	65	115
PI503A154	15.4	16	45	65	115
PI503F154	15.4	16	45	65	115
PI503A155	15.5	16	45	65	115
PI503F155	15.5	16	45	65	115
PI503A156	15.6	16	45	65	115
PI503F156	15.6	16	45	65	115
PI503A157	15.7	16	45	65	115
PI503F157	15.7	16	45	65	115
PI503A158	15.8	16	45	65	115
PI503F158	15.8	16	45	65	115
PI503A159	15.9	16	45	65	115
PI503F159	15.9	16	45	65	115
PI503A160	16.0	16	45	65	115
PI503F160	16.0	16	45	65	115
PI503A161	16.1	18	51	73	123
PI503F161	16.1	18	51	73	123
PI503A163	16.3	18	51	73	123
PI503F163	16.3	18	51	73	123
PI503A165	16.5	18	51	73	123
PI503F165	16.5	18	51	73	123
PI503A170	17.0	18	51	73	123
PI503F170	17.0	18	51	73	123
PI503A171	17.1	18	51	73	123
PI503F171	17.1	18	51	73	123
PI503A172	17.2	18	51	73	123
PI503F172	17.2	18	51	73	123
PI503A175	17.5	18	51	73	123
PI503F175	17.5	18	51	73	123
PI503A177	17.7	18	51	73	123
PI503F177	17.7	18	51	73	123
PI503A178	17.8	18	51	73	123
PI503F178	17.8	18	51	73	123
PI503A180	18.0	18	51	73	123
PI503F180	18.0	18	51	73	123
PI503A181	18.1	20	55	79	131
PI503F181	18.1	20	55	79	131
PI503A182	18.2	20	55	79	131
PI503F182	18.2	20	55	79	131
PI503A185	18.5	20	55	79	131
PI503F185	18.5	20	55	79	131
PI503A190	19.0	20	55	79	131
PI503F190	19.0	20	55	79	131
PI503A191	19.1	20	55	79	131
PI503F191	19.1	20	55	79	131
PI503A195	19.5	20	55	79	131
PI503F195	19.5	20	55	79	131
PI503A197	19.7	20	55	79	131
PI503F197	19.7	20	55	79	131
PI503A200	20.0	20	55	79	131
PI503F200	20.0	20	55	79	131
