Mũi khoan gắn mảnh Drill-Fix PRO Kennametal – 5×D – hệ mét

Click vào hình để phóng to

Mũi khoan gắn mảnh Drill-Fix PRO Kennametal – 5×D – hệ mét

Name: Mũi khoan gắn mảnh Drill-Fix PRO Kennametal – 5×D – hệ mét
Brand: KENNAMETAL
SKU: MU5197
Availability: InStock
Rating: 5 (1 reviews)

Mã sản phẩm: 103140889

Danh mục: Mũi khoan

Thương hiệu: Kennametal

Xuất xứ: Mỹ

Hotline: 0985779287

Trụ sở chính Hà Nội:

Hà Nội
Hotline: 0985779287
Email: info@ducphong.vn
Địa chỉ: Tầng 7, Căn số 32V5A, KĐT Văn Phú, phường Phú La, quận Hà Đông, TP. Hà Nội

Thời gian làm việc: Từ 8h - 17h từ Thứ 2 đến Thứ 6. Sáng thứ 7 từ 8h-12h, nghỉ Chủ Nhật

Chi nhánh TP.HCM:

Thành phố Hồ Chí Minh
Hotline: 0985779287
Email: info@ducphong.vn
Địa chỉ: 228/55, Thống Nhất, P. 10, Q. Gò Vấp, TP. HCM

Thời gian làm việc: Từ 8h - 17h từ Thứ 2 đến Thứ 6. Sáng thứ 7 từ 8h-12h, nghỉ Chủ Nhật

Đang tải

Hình	Mã hàng	Mô tả	Giá bán (vnđ)	Số lượng

ĐẶC ĐIỂM NỔI BẬT

Đặc điểm sản phẩm:

Mũi khoan đa năng: Có thể dùng cho nhiều loại vật liệu phôi khác nhau.
Dùng để khoan các loại lỗ: Lỗ thẳng, lỗ có vết cắt gián đoạn, và các bề mặt có vật liệu thô từ quá trình đúc, rèn hoặc hàn.
Hai hệ thống làm mát được đặt lệch tâm: Cung cấp lượng dung dịch làm mát lớn hơn, giúp tăng tốc độ tách vật liệu, tuổi thọ dụng cụ và năng suất.
Rãnh xoắn: Giúp thoát phoi hoàn hảo.
Thân mũi khoan có độ cứng cao: Giúp triệt tiêu tiếng ồn và rung động, mang lại độ chính xác về kích thước và chất lượng lỗ tốt nhất.
Tính năng bù trừ X (X-offset): Cho phép điều chỉnh đường kính ngay trên máy và ứng dụng trên máy tiện.

Thông số kỹ thuật sản phẩm

Các sản phẩm biến thể:

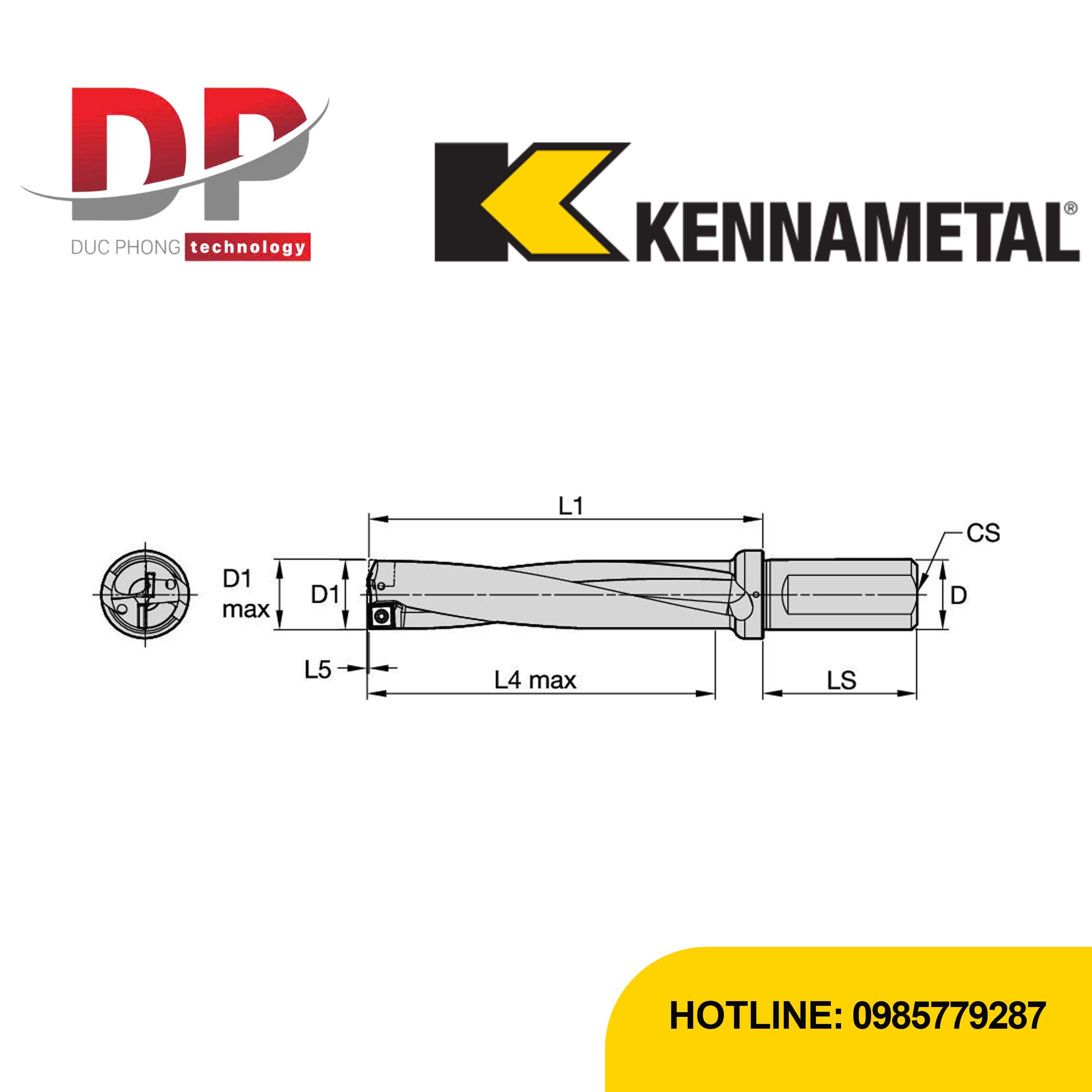

SAP Material Number	ISO Catalog Number	D1	D1MAX	L5	L1	L4	LS	D	CS	Internal Face Catalog Gage Insert 1	Internal Face Catalog Gage Insert 2
7034832	DFPR120R5WB20M	12	12.5	0.32	81	60	50	20	1/8-27 NPT	DFPR040204__O	DFPR040203__I
7034833	DFPR125R5WB20M	12.5	13	0.36	83.5	62.5	50	20	1/8-27 NPT	DFPR040204__O	DFPR040203__I
7034834	DFPR130R5WB20M	13	13.5	0.4	86	65	50	20	1/8-27 NPT	DFPR040204__O	DFPR040203__I
7034835	DFPR135R5WB20M	13.5	14	0.44	87.5	67.5	50	20	1/8-27 NPT	DFPR040204__O	DFPR040203__I
7034836	DFPR140R5WB20M	14	14.5	0.36	90	70	50	20	1/8-27 NPT	DFPR050204__O	DFPR050203__I
7034837	DFPR145R5WB20M	14.5	15	0.4	92.5	72.5	50	20	1/8-27 NPT	DFPR050204__O	DFPR050203__I
7034838	DFPR150R5WB20M	15	15.5	0.44	94	75	50	20	1/8-27 NPT	DFPR050204__O	DFPR050203__I
7034839	DFPR155R5WB20M	15.5	16	0.48	96.5	77.5	50	20	1/8-27 NPT	DFPR050204__O	DFPR050203__I
7034840	DFPR160R5WB20M	16	16.5	0.99	99	80	50	20	1/8-27 NPT	DFPR050204__O	DFPR050203__I
7034201	DFPR165R5WB20M	16.5	17	0.21	102.5	82.5	50	20	1/8-27 NPT	DFPR060304__O	DFPR060304__I
7034202	DFPR170R5WB20M	17	17.5	0.26	104	85	50	20	1/8-27 NPT	DFPR060304__O	DFPR060304__I
7034203	DFPR175R5WB25M	17.5	18	0.49	107.5	87.5	56	25	1/4-18 NPT	DFPR060304__O	DFPR060304__I
7034204	DFPR180R5WB25M	18	18.5	0.35	110	90	56	25	1/4-18 NPT	DFPR060304__O	DFPR060304__I
7034205	DFPR185R5WB25M	18.5	19	0.58	112.5	92.5	56	25	1/4-18 NPT	DFPR060304__O	DFPR060304__I
7034206	DFPR190R5WB25M	19	19.5	0.62	114	95	56	25	1/4-18 NPT	DFPR060304__O	DFPR060304__I
7034207	DFPR195R5WB25M	19.5	20	0.67	116.5	97.5	56	25	1/4-18 NPT	DFPR060304__O	DFPR060304__I
7030414	DFPR200R5WB25M	20	21	0.26	119	100	56	25	1/4-18 NPT	DFPR070305__O	DFPR080304__I
7030415	DFPR210R5WB25M	21	22	0.58	123	105	56	25	1/4-18 NPT	DFPR070305__O	DFPR080304__I
7030416	DFPR220R5WB25M	22	23	0.67	128	110	56	25	1/4-18 NPT	DFPR070305__O	DFPR080304__I
7030417	DFPR230R5WB25M	23	24	0.76	132	115	56	25	1/4-18 NPT	DFPR070305__O	DFPR080304__I
7030418	DFPR240R5WB25M	24	25	0.84	137	120	56	25	1/4-18 NPT	DFPR070305__O	DFPR080304__I
7034208	DFPR250R5WB25M	25	26	0.35	142	125	56	25	1/4-18 NPT	DFPR090305__O	DFPR100305__I
7034209	DFPR260R5WB32M	26	27	0.44	154	130	60	32	1/4-18 NPT	DFPR090305__O	DFPR100305__I
7214604	DFPR265R5WB32M	26.5	27.5	0.78	156.5	132.5	60	32	1/4-18 NPT	DFPR090305__O	DFPR100305__I
7034210	DFPR270R5WB32M	27	28	0.52	159	135	60	32	1/4-18 NPT	DFPR090305__O	DFPR100305__I
7034211	DFPR280R5WB32M	28	29	0.61	163	140	60	32	1/4-18 NPT	DFPR090305__O	DFPR100305__I
7034212	DFPR290R5WB32M	29	30	0.7	168	145	60	32	1/4-18 NPT	DFPR090305__O	DFPR100305__I
7034213	DFPR300R5WB32M	30	31	0.79	172	150	60	32	1/4-18 NPT	DFPR090305__O	DFPR100305__I
7030419	DFPR310R5WB40M	31	32	0.4	181	155	70	40	1/4-18 NPT	DFPR110406__O	DFPR120405__I
7030420	DFPR320R5WB40M	32	33	0.48	185	160	70	40	1/4-18 NPT	DFPR110406__O	DFPR120405__I
7030421	DFPR330R5WB40M	33	34	0.93	190	165	70	40	1/4-18 NPT	DFPR110406__O	DFPR120405__I
7030422	DFPR340R5WB40M	34	35	1.02	194	170	70	40	1/4-18 NPT	DFPR110406__O	DFPR120405__I
7030423	DFPR350R5WB40M	35	36	1.11	199	175	70	40	1/4-18 NPT	DFPR110406__O	DFPR120405__I
7030424	DFPR360R5WB40M	36	37	1.19	203	180	70	40	1/4-18 NPT	DFPR110406__O	DFPR120405__I
7030425	DFPR370R5WB40M	37	38	1.28	208	185	70	40	1/4-18 NPT	DFPR110406__O	DFPR120405__I
7030647	DFPR380R5WB40M	38	39	0.91	217	190	70	40	1/4-18 NPT	DFPR140408__O	DFPR140406__I
7030649	DFPR390R5WB40M	39	40	0.99	221	195	70	40	1/4-18 NPT	DFPR140408__O	DFPR140406__I
7030650	DFPR400R5WB40M	40	41	1.08	226	200	70	40	1/4-18 NPT	DFPR140408__O	DFPR140406__I
7030652	DFPR410R5WB40M	41	42	1.16	230	205	70	40	1/4-18 NPT	DFPR140408__O	DFPR140406__I
7030653	DFPR420R5WB40M	42	43	1.25	236	210	70	40	1/4-18 NPT	DFPR140408__O	DFPR140406__I
7030654	DFPR430R5WB40M	43	44	1.33	240	215	70	40	1/4-18 NPT	DFPR140408__O	DFPR140406__I
7030655	DFPR440R5WB40M	44	45	1.42	245	220	70	40	1/4-18 NPT	DFPR140408__O	DFPR140406__I
7214530	DFPR450R5WB40M	45	46	1.5	251	225	70	40	1/4-18 NPT	DFPR140408__O	DFPR140406__I
7030656	DFPR450R5WB50M	45	46	1.5	257	225	80	50	1/4-18 NPT	DFPR140408__O	DFPR140406__I
7214616	DFPR460R5WB40M	46	47	1.2	258	230	70	40	1/4-18 NPT	DFPR150508__O	DFPR170508__I
7030657	DFPR460R5WB50M	46	47	1.2	260	230	80	50	1/4-18 NPT	DFPR150508__O	DFPR170508__I
7214617	DFPR470R5WB40M	47	48	1.28	263	235	70	40	1/4-18 NPT	DFPR150508__O	DFPR170508__I
7030658	DFPR470R5WB50M	47	48	1.28	265	235	80	50	1/4-18 NPT	DFPR150508__O	DFPR170508__I
7214618	DFPR480R5WB40M	48	49	1.36	269	240	70	40	1/4-18 NPT	DFPR150508__O	DFPR170508__I
7030659	DFPR480R5WB50M	48	49	1.36	269	240	80	50	1/4-18 NPT	DFPR150508__O	DFPR170508__I
7214619	DFPR490R5WB40M	49	50	1.44	273	245	70	40	1/4-18 NPT	DFPR150508__O	DFPR170508__I
7030660	DFPR490R5WB50M	49	50	1.44	274	245	80	50	1/4-18 NPT	DFPR150508__O	DFPR170508__I
7214620	DFPR500R5WB40M	50	51	1.52	278	250	70	40	1/4-18 NPT	DFPR150508__O	DFPR170508__I
7030661	DFPR500R5WB50M	50	51	1.52	280	250	80	50	1/4-18 NPT	DFPR150508__O	DFPR170508__I
7214621	DFPR510R5WB40M	51	52	1.6	285	255	70	40	1/4-18 NPT	DFPR150508__O	DFPR170508__I
7030662	DFPR510R5WB50M	51	52	1.6	284	255	80	50	1/4-18 NPT	DFPR150508__O	DFPR170508__I
7214622	DFPR520R5WB40M	52	53	1.69	290	260	70	40	1/4-18 NPT	DFPR150508__O	DFPR170508__I
7030663	DFPR520R5WB50M	52	53	1.69	289	260	80	50	1/4-18 NPT	DFPR150508__O	DFPR170508__I
7214623	DFPR530R5WB40M	53	54	1.77	295	265	70	40	1/4-18 NPT	DFPR150508__O	DFPR170508__I
7030664	DFPR530R5WB50M	53	54	1.77	293	265	80	50	1/4-18 NPT	DFPR150508__O	DFPR170508__I
7214624	DFPR540R5WB40M	54	55	1.85	300	270	70	40	1/4-18 NPT	DFPR150508__O	DFPR170508__I
7030665	DFPR540R5WB50M	54	55	1.85	298	270	80	50	1/4-18 NPT	DFPR150508__O	DFPR170508__I
7030769	DFPR550R5WB50M	55	56	1.37	309	275	80	50	1/4-18 NPT	DFPR180610__O	DFPR200608__I
7030781	DFPR560R5WB50M	56	57	1.45	314	280	80	50	1/4-18 NPT	DFPR180610__O	DFPR200608__I
7030782	DFPR570R5WB50M	57	58	1.53	318	285	80	50	1/4-18 NPT	DFPR180610__O	DFPR200608__I
7030783	DFPR580R5WB50M	58	59	1.61	323	290	80	50	1/4-18 NPT	DFPR180610__O	DFPR200608__I
7030784	DFPR590R5WB50M	59	60	1.7	330	295	80	50	1/4-18 NPT	DFPR180610__O	DFPR200608__I
7030785	DFPR600R5WB50M	60	61	1.78	335	300	80	50	1/4-18 NPT	DFPR180610__O	DFPR200608__I
7030786	DFPR610R5WB50M	61	62	1.86	340	305	80	50	1/4-18 NPT	DFPR180610__O	DFPR200608__I
7030787	DFPR620R5WB50M	62	63	1.94	345	310	80	50	1/4-18 NPT	DFPR180610__O	DFPR200608__I
7030788	DFPR630R5WB50M	63	64	2.02	350	315	80	50	1/4-18 NPT	DFPR180610__O	DFPR200608__I
7030789	DFPR640R5WB50M	64	65	2.1	355	320	80	50	1/4-18 NPT	DFPR180610__O	DFPR200608__I
7030790	DFPR650R5WB50M	65	66	2.19	360	325	80	50	1/4-18 NPT	DFPR180610__O	DFPR200608__I
