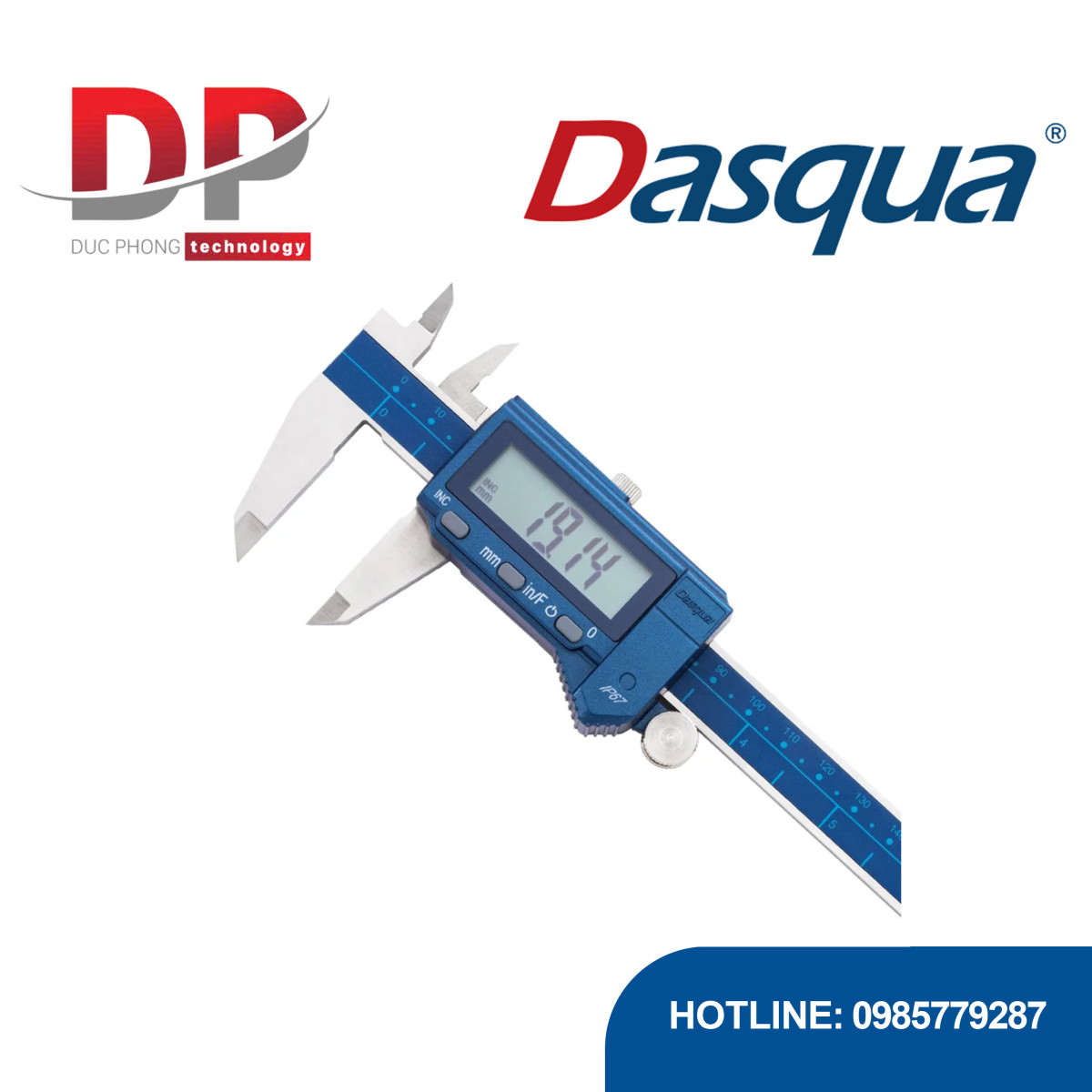

Thước cặp IP67 0-200mm*0.01mm, 2015-1010-A DAS

Features:

• With calibration certificate.

• Strictly made in accordance with DIN862.

• Features a large-format LCD for clear, effortless reading of measurement values.

• Precision-ground measuring jaws with parallelism ≤0.003mm.

• The beam surfaces are precision-ground with parallelism maintained below 0.015mm, ensuring smooth and consistent slider movement throughout the measuring range.

• The caliper’s body and frame are constructed from high-grade stainless steel and undergo vacuum quenching heat treatment, achieving a hardness of no less than HRC 52.5 for enhanced durability and wear resistance.

• It adopts an internationally advanced 4th generation inductive chip, which perfectly solves the influence of oil and water on the measurement accuracy of traditional capacitive chips. The entire electronic component is sealed, greatly improving the stability of the product.

• This caliper is not only waterproof and dustproof in compliance with IP67 standards, but also engineered for oil resistance, allowing full immersion in coolant. It offers an ideal solution for reliable measurement in workshop environments where exposure to coolant and harsh conditions is common.

• Each caliper is securely packaged in a sturdy protective case with foam padding.

Technical Data:

Range: 0-200mm / 0-8"
Resolution: 0.01mm / 0.0005" / 1/128th"
Accuracy: ±0.03mm / 0.0015"
Measurement system: Metric/Inch/Fraction
Button function: On/Off, Zero, mm/in/F, INC
Protection rating: IP67
Thumb roller: Yes
Auto-Off: Yes
Auto-On: Yes. The display automatically restores upon slider movement.
Battery size: CR2032

Model #: 2015-1010-A
