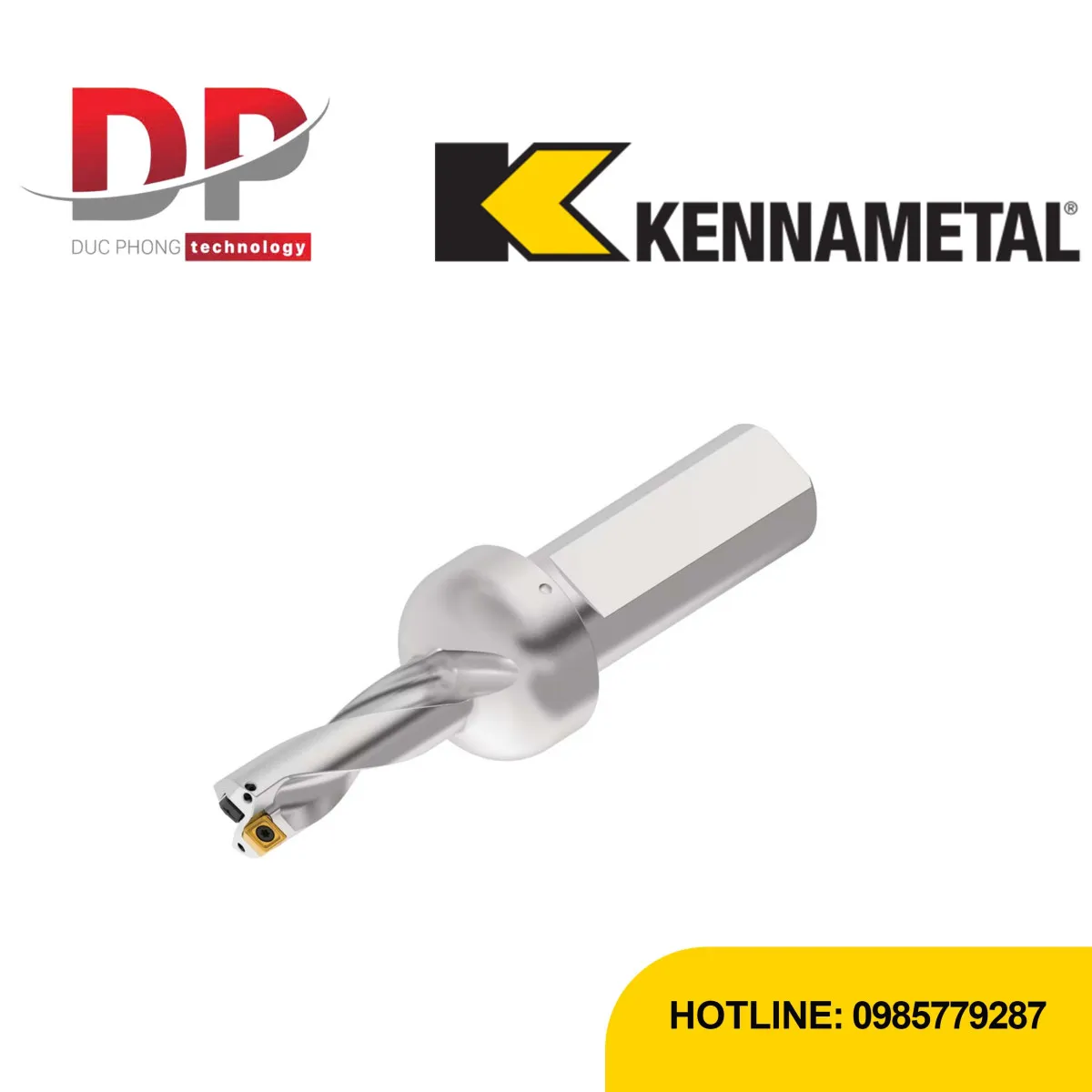

Mũi khoan gắn mảnh Drill-Fix PRO Kennameta - 2×D – hệ mét

Click vào hình để phóng to

Mũi khoan gắn mảnh Drill-Fix PRO Kennameta - 2×D – hệ mét

Name: Mũi khoan gắn mảnh Drill-Fix PRO Kennameta - 2×D – hệ mét
Brand: KENNAMETAL
SKU: MU1686
Availability: InStock
Rating: 5 (1 reviews)

Mã sản phẩm: 103140887

Danh mục: Mũi khoan

Thương hiệu: Kennametal

Xuất xứ: Mỹ

Hotline: 0985779287

Trụ sở chính Hà Nội:

Hà Nội
Hotline: 0985779287
Email: info@ducphong.vn
Địa chỉ: Tầng 7, Căn số 32V5A, KĐT Văn Phú, phường Phú La, quận Hà Đông, TP. Hà Nội

Thời gian làm việc: Từ 8h - 17h từ Thứ 2 đến Thứ 6. Sáng thứ 7 từ 8h-12h, nghỉ Chủ Nhật

Chi nhánh TP.HCM:

Thành phố Hồ Chí Minh
Hotline: 0985779287
Email: info@ducphong.vn
Địa chỉ: 228/55, Thống Nhất, P. 10, Q. Gò Vấp, TP. HCM

Thời gian làm việc: Từ 8h - 17h từ Thứ 2 đến Thứ 6. Sáng thứ 7 từ 8h-12h, nghỉ Chủ Nhật

Đang tải

Hình	Mã hàng	Mô tả	Giá bán (vnđ)	Số lượng

ĐẶC ĐIỂM NỔI BẬT

Đặc điểm sản phẩm:

Mũi khoan đa năng: Có thể dùng cho nhiều loại vật liệu phôi khác nhau.
Dùng để khoan các loại lỗ: Lỗ thẳng, lỗ có vết cắt gián đoạn, và các bề mặt có vật liệu thô từ quá trình đúc, rèn hoặc hàn.
Hai hệ thống làm mát được đặt lệch tâm: Cung cấp lượng dung dịch làm mát lớn hơn, giúp tăng tốc độ tách vật liệu, tuổi thọ dụng cụ và năng suất.
Rãnh xoắn: Giúp thoát phoi hoàn hảo.
Thân mũi khoan có độ cứng cao: Giúp triệt tiêu tiếng ồn và rung động, mang lại độ chính xác về kích thước và chất lượng lỗ tốt nhất.
Tính năng bù trừ X (X-offset): Cho phép điều chỉnh đường kính ngay trên máy và ứng dụng trên máy tiện.

Thông số kỹ thuật sản phẩm

Các sản phẩm biến thể:

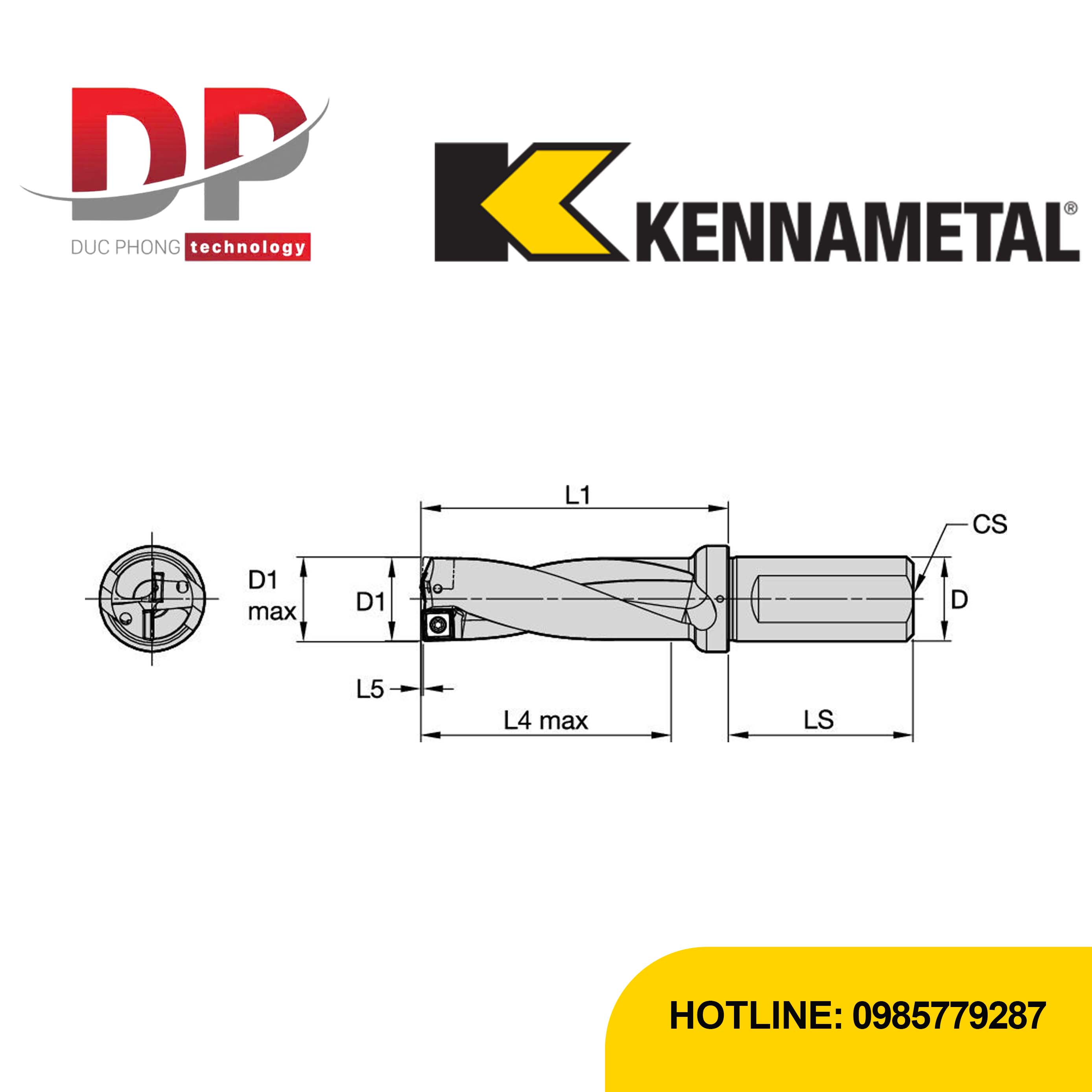

SAP Material Number	ISO Catalog Number	D1	D1MAX	L5	L1	L4	LS	D	CS	Internal Face Catalog Gage Insert 1	Internal Face Catalog Gage Insert 2
7034804	DFPR120R3WB20M	12	12.5	0.32	57	36	50	20	1/8-27 NPT	DFPR040204__O	DFPR040203__I
7034805	DFPR125R3WB20M	12.5	13	0.36	58.5	37.5	50	20	1/8-27 NPT	DFPR040204__O	DFPR040203__I
7034806	DFPR130R3WB20M	13	13.5	0.4	60	39	50	20	1/8-27 NPT	DFPR040204__O	DFPR040203__I
7034807	DFPR135R3WB20M	13.5	14	0.44	60.5	40.5	50	20	1/8-27 NPT	DFPR040204__O	DFPR040203__I
7034808	DFPR140R3WB20M	14	14.5	0.36	62	42	50	20	1/8-27 NPT	DFPR050204__O	DFPR050203__I
7034809	DFPR145R3WB20M	14.5	15	0.4	63.5	43.5	50	20	1/8-27 NPT	DFPR050204__O	DFPR050203__I
7034810	DFPR150R3WB20M	15	15.5	0.44	64	45	50	20	1/8-27 NPT	DFPR050204__O	DFPR050203__I
7034811	DFPR155R3WB20M	15.5	16	0.48	65.5	46.5	50	20	1/8-27 NPT	DFPR050204__O	DFPR050203__I
7034812	DFPR160R3WB20M	16	16.5	0.52	67	48	50	20	1/8-27 NPT	DFPR050204__O	DFPR050203__I
7034145	DFPR165R3WB20M	16.5	17	0.21	69.5	49.5	50	20	1/8-27 NPT	DFPR060304__O	DFPR060304__I
7034146	DFPR170R3WB20M	17	17.5	0.26	70	51	50	20	1/8-27 NPT	DFPR060304__O	DFPR060304__I
7034147	DFPR175R3WB25M	17.5	18	0.3	72.5	52.5	56	25	1/4-18 NPT	DFPR060304__O	DFPR060304__I
7034148	DFPR180R3WB25M	18	18.5	0.35	74	54	56	25	1/4-18 NPT	DFPR060304__O	DFPR060304__I
7034149	DFPR185R3WB25M	18.5	19	0.39	75.5	55.5	56	25	1/4-18 NPT	DFPR060304__O	DFPR060304__I
7034150	DFPR190R3WB25M	19	19.5	0.62	76	57	56	25	1/4-18 NPT	DFPR060304__O	DFPR060304__I
7034151	DFPR195R3WB25M	19.5	20	0.48	77.5	58.5	56	25	1/4-18 NPT	DFPR060304__O	DFPR060304__I
7030360	DFPR200R3WB25M	20	21	0.5	79	60	56	25	1/4-18 NPT	DFPR070305__O	DFPR080304__I
7030361	DFPR210R3WB25M	21	22	0.58	81	63	56	25	1/4-18 NPT	DFPR070305__O	DFPR080304__I
7030362	DFPR220R3WB25M	22	23	0.67	84	66	56	25	1/4-18 NPT	DFPR070305__O	DFPR080304__I
7030363	DFPR230R3WB25M	23	24	0.75	86	69	56	25	1/4-18 NPT	DFPR070305__O	DFPR080304__I
7030364	DFPR240R3WB25M	24	25	0.84	89	72	56	25	1/4-18 NPT	DFPR070305__O	DFPR080304__I
7034152	DFPR250R3WB25M	25	26	0.35	92	75	56	25	1/4-18 NPT	DFPR090305__O	DFPR100305__I
7034153	DFPR260R3WB32M	26	27	0.44	102	78	60	32	1/4-18 NPT	DFPR090305__O	DFPR100305__I
7214602	DFPR265R3WB32M	26.5	27.5	0.78	103.5	79.5	60	32	1/4-18 NPT	DFPR090305__O	DFPR100305__I
7034154	DFPR270R3WB32M	27	28	0.52	105	81	60	32	1/4-18 NPT	DFPR090305__O	DFPR100305__I
7034155	DFPR280R3WB32M	28	29	0.61	107	84	60	32	1/4-18 NPT	DFPR090305__O	DFPR100305__I
7034156	DFPR290R3WB32M	29	30	0.7	110	87	60	32	1/4-18 NPT	DFPR090305__O	DFPR100305__I
7034157	DFPR300R3WB32M	30	31	0.79	112	90	60	32	1/4-18 NPT	DFPR090305__O	DFPR100305__I
7030365	DFPR310R3WB40M	31	32	0.4	119	93	70	40	1/4-18 NPT	DFPR110406__O	DFPR120405__I
7030366	DFPR320R3WB40M	32	33	0.48	121	96	70	40	1/4-18 NPT	DFPR110406__O	DFPR120405__I
7030367	DFPR330R3WB40M	33	34	0.93	124	99	70	40	1/4-18 NPT	DFPR110406__O	DFPR120405__I
7030368	DFPR340R3WB40M	34	35	1.02	126	102	70	40	1/4-18 NPT	DFPR110406__O	DFPR120405__I
7030369	DFPR350R3WB40M	35	36	1.11	129	105	70	40	1/4-18 NPT	DFPR110406__O	DFPR120405__I
7030370	DFPR360R3WB40M	36	37	1.19	131	108	70	40	1/4-18 NPT	DFPR110406__O	DFPR120405__I
7030381	DFPR370R3WB40M	37	38	1.28	134	111	70	40	1/4-18 NPT	DFPR110406__O	DFPR120405__I
7030588	DFPR380R3WB40M	38	39	0.91	141	114	70	40	1/4-18 NPT	DFPR140408__O	DFPR140406__I
7030589	DFPR390R3WB40M	39	40	0.99	143	117	70	40	1/4-18 NPT	DFPR140408__O	DFPR140406__I
7030590	DFPR400R3WB40M	40	41	1.08	146	120	70	40	1/4-18 NPT	DFPR140408__O	DFPR140406__I
7030604	DFPR410R3WB40M	41	42	1.16	148	123	70	40	1/4-18 NPT	DFPR140408__O	DFPR140406__I
7030605	DFPR420R3WB40M	42	43	1.25	152	126	70	40	1/4-18 NPT	DFPR140408__O	DFPR140406__I
7030606	DFPR430R3WB40M	43	44	1.33	154	129	70	40	1/4-18 NPT	DFPR140408__O	DFPR140406__I
7030607	DFPR440R3WB40M	44	45	1.42	157	132	70	40	1/4-18 NPT	DFPR140408__O	DFPR140406__I
7214528	DFPR450R3WB40M	45	46	1.5	161	135	70	40	1/4-18 NPT	DFPR140408__O	DFPR140406__I
7030608	DFPR450R3WB50M	45	46	1.5	167	135	80	50	1/4-18 NPT	DFPR140408__O	DFPR140406__I
7214818	DFPR460R3WB40M	46	47	1.2	166	138	70	40	1/4-18 NPT	DFPR150508__O	DFPR170508__I
7030609	DFPR460R3WB50M	46	47	1.2	168	138	80	50	1/4-18 NPT	DFPR150508__O	DFPR170508__I
7214819	DFPR470R3WB40M	47	48	1.28	169	141	70	40	1/4-18 NPT	DFPR150508__O	DFPR170508__I
7030610	DFPR470R3WB50M	47	48	1.28	171	141	80	50	1/4-18 NPT	DFPR150508__O	DFPR170508__I
7214820	DFPR480R3WB40M	48	49	1.36	173	144	70	40	1/4-18 NPT	DFPR150508__O	DFPR170508__I
7030611	DFPR480R3WB50M	48	49	1.36	173	144	80	50	1/4-18 NPT	DFPR150508__O	DFPR170508__I
7214821	DFPR490R3WB40M	49	50	1.44	175	147	70	40	1/4-18 NPT	DFPR150508__O	DFPR170508__I
7030612	DFPR490R3WB50M	49	50	1.4	176	147	80	50	1/4-18 NPT	DFPR150508__O	DFPR170508__I
7214822	DFPR500R3WB40M	50	51	1.52	178	150	70	40	1/4-18 NPT	DFPR150508__O	DFPR170508__I
7030613	DFPR500R3WB50M	50	51	1.52	180	150	80	50	1/4-18 NPT	DFPR150508__O	DFPR170508__I
7214823	DFPR510R3WB40M	51	52	1.6	183	153	70	40	1/4-18 NPT	DFPR150508__O	DFPR170508__I
7030614	DFPR510R3WB50M	51	52	1.6	182	153	80	50	1/4-18 NPT	DFPR150508__O	DFPR170508__I
7214824	DFPR520R3WB40M	52	53	1.69	186	156	70	40	1/4-18 NPT	DFPR150508__O	DFPR170508__I
7030615	DFPR520R3WB50M	52	53	1.69	185	156	80	50	1/4-18 NPT	DFPR150508__O	DFPR170508__I
7214825	DFPR530R3WB40M	53	54	1.77	189	159	70	40	1/4-18 NPT	DFPR150508__O	DFPR170508__I
7030617	DFPR530R3WB50M	53	54	1.77	187	159	80	50	1/4-18 NPT	DFPR150508__O	DFPR170508__I
7214826	DFPR540R3WB40M	54	55	1.85	192	162	70	40	1/4-18 NPT	DFPR150508__O	DFPR170508__I
7030618	DFPR540R3WB50M	54	55	1.85	190	162	80	50	1/4-18 NPT	DFPR150508__O	DFPR170508__I
7214675	DFPR550R3WB40M	55	56	1.37	197	165	70	40	1/4-18 NPT	DFPR180610__O	DFPR200608__I
7030726	DFPR550R3WB50M	55	56	1.37	199	165	80	50	1/4-18 NPT	DFPR180610__O	DFPR200608__I
7214676	DFPR560R3WB40M	56	57	1.45	200	200	70	40	1/4-18 NPT	DFPR180610__O	DFPR200608__I
7030727	DFPR560R3WB50M	56	57	1.45	202	168	80	50	1/4-18 NPT	DFPR180610__O	DFPR200608__I
7214678	DFPR570R3WB40M	57	58	1.53	203	203	70	40	1/4-18 NPT	DFPR180610__O	DFPR200608__I
7030729	DFPR570R3WB50M	57	58	1.53	204	171	80	50	1/4-18 NPT	DFPR180610__O	DFPR200608__I
7214679	DFPR580R3WB40M	58	59	1.61	206	174	70	40	1/4-18 NPT	DFPR180610__O	DFPR200608__I
7030730	DFPR580R3WB50M	58	59	1.61	207	174	80	50	1/4-18 NPT	DFPR180610__O	DFPR200608__I
7214680	DFPR590R3WB40M	59	60	1.7	211	177	70	40	1/4-18 NPT	DFPR180610__O	DFPR200608__I
7030751	DFPR590R3WB50M	59	60	1.7	212	177	80	50	1/4-18 NPT	DFPR180610__O	DFPR200608__I
7214681	DFPR600R3WB40M	60	61	1.78	214	180	70	40	1/4-18 NPT	DFPR180610__O	DFPR200608__I
7030752	DFPR600R3WB50M	60	61	1.78	215	180	80	50	1/4-18 NPT	DFPR180610__O	DFPR200608__I
7214683	DFPR610R3WB40M	61	62	1.86	217	183	70	40	1/4-18 NPT	DFPR180610__O	DFPR200608__I
7030753	DFPR610R3WB50M	61	62	1.86	218	183	80	50	1/4-18 NPT	DFPR180610__O	DFPR200608__I
7214684	DFPR620R3WB40M	62	63	1.94	220	186	70	40	1/4-18 NPT	DFPR180610__O	DFPR200608__I
7030754	DFPR620R3WB50M	62	63	1.94	221	186	80	50	1/4-18 NPT	DFPR180610__O	DFPR200608__I
7214685	DFPR630R3WB40M	63	64	2.02	224	189	70	40	1/4-18 NPT	DFPR180610__O	DFPR200608__I
7030755	DFPR630R3WB50M	63	64	2.02	224	189	80	50	1/4-18 NPT	DFPR180610__O	DFPR200608__I
7214686	DFPR640R3WB40M	64	65	2.1	227	192	70	40	1/4-18 NPT	DFPR180610__O	DFPR200608__I
7030756	DFPR640R3WB50M	64	65	2.1	227	192	80	50	1/4-18 NPT	DFPR180610__O	DFPR200608__I
7214687	DFPR650R3WB40M	65	66	2.19	230	195	70	40	1/4-18 NPT	DFPR180610__O	DFPR200608__I
7030757	DFPR650R3WB50M	65	66	2.19	230	195	80	50	1/4-18 NPT	DFPR180610__O	DFPR200608__I
